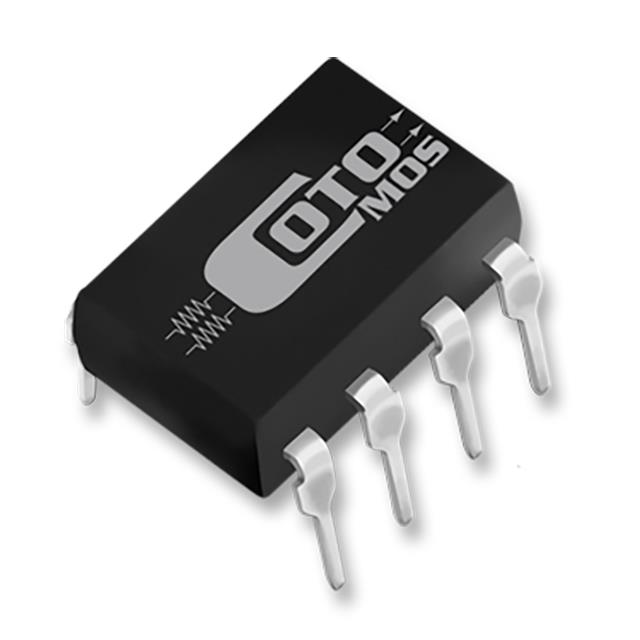

Specification	CT334

Circuit	SPST-NO (1 Form A) x 2
Load Current	180 mA
Mounting Type	Through Hole
On-State Resistance (Max)	8 Ohms
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-40 °C
Output Type	AC, DC
Package Length	0.3 in
Package Name	8-DIP
Package Width	7.62 mm
Termination Style	PC Pin
Voltage - Input	1.37 VDC
Voltage - Load (Max)	200 V
Voltage - Load (Min)	0 V

- Series

...

Part	Load Current	Voltage - Input	Operating Temperature (Min)	Operating Temperature (Max)	Mounting Type	Voltage - Load (Max)	Package Length	Package Name	Package Width	Output Type	On-State Resistance (Max)	Circuit	Termination Style	Package / Case	Approval Agency	Voltage - Input (DC) Maximum	Voltage - Input (DC) Minimum
COTO TECHNOLOGY CT140	45 mA	1.17 VDC	-40 °C	85 °C	Through Hole	1500 V	0.3 in	6-DIP	7.62 mm	AC DC	200 Ohm	SPST-NO (1 Form A)	PC Pin
COTO TECHNOLOGY CS126	2 A	1.4 V	-40 °C	85 °C	Surface Mount	40 V	0.3 in	6-SMD	7.62 mm	AC DC	500 mOhm	SPST-NO (1 Form A)	Gull Wing
COTO TECHNOLOGY CS147	2 A	1.37 VDC	-40 °C	85 °C	Surface Mount	80 V	0.3 in	6-SMD	7.62 mm	AC DC	160 mOhms	SPST-NO (1 Form A)	Gull Wing
COTO TECHNOLOGY CT137	400 mA	1.37 VDC	-40 °C	85 °C	Through Hole	60 V	0.3 in	6-DIP	7.62 mm	AC DC	1.6 Ohms	SPST-NO (1 Form A)	PC Pin
COTO TECHNOLOGY CS330	0.1 A	1.37 VDC	-40 °C	85 °C	Surface Mount	400 V	0.3 in	8-SMD		AC DC	30 Ohm	SPST-NO (1 Form A) x 2	Gull Wing
COTO TECHNOLOGY C347S	1000 mA	1.37 VDC	-40 °C	85 °C	Surface Mount	80 V	0.173 in	8-SOP	4.4 mm	AC DC	150 mOhms	SPST-NO (1 Form A) x 2	Gull Wing
COTO TECHNOLOGY C217S	130 mA		-40 °C	85 °C	Surface Mount	60 V		4-SOP		AC DC	16 Ohm	SPST-NO (1 Form A)	Gull Wing	4-SMD Gull Wing	cUL UL	1.5 VDC	1.2 VDC
COTO TECHNOLOGY C226S	2 A	1.37 VDC	-40 °C	85 °C	Surface Mount	40 V	0.173 in	4-SOP	4.4 mm	AC DC	0.085 Ohms	SPST-NO (1 Form A)	Gull Wing
COTO TECHNOLOGY CT135	0.1 A	1.37 VDC	-40 °C	85 °C	Through Hole	80 V	0.3 in	6-DIP	7.62 mm	AC DC	30 Ohm	SPST-NO (1 Form A)	PC Pin
COTO TECHNOLOGY CS128	4.5 A	1.37 VDC	-40 °C	85 °C	Surface Mount	40 V	0.3 in	6-SMD	7.62 mm	AC DC	50 mOhms	SPST-NO (1 Form A)	Gull Wing
