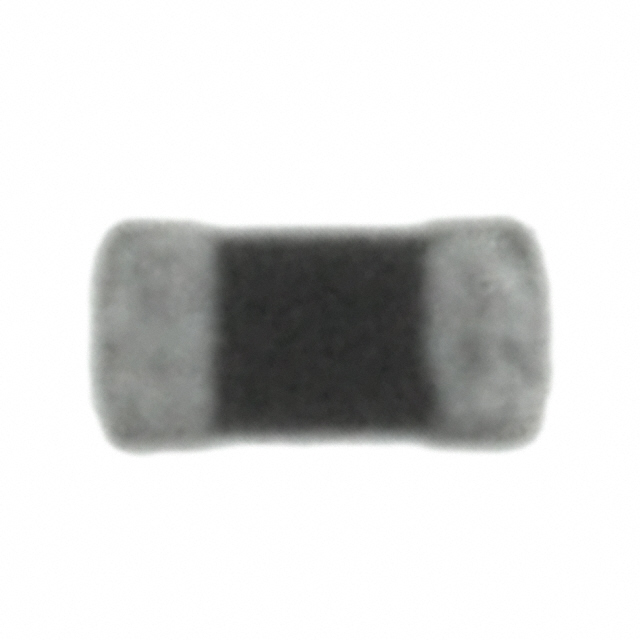

LI0201B121R-10
ActiveLaird Technologies EMI
FERRITE BEAD 120 OHM 0201 1LN
LI0201B121R-10
ActiveLaird Technologies EMI
FERRITE BEAD 120 OHM 0201 1LN
Description
General part information
LI0201B121R-10
120 Ohms @ 100 MHz 1 Power, Signal Line Ferrite Bead 0201 (0603 Metric) 200mA 800mOhm
Technical Specifications
Parameters and characteristics for this part
| Specification | LI0201B121R-10 |
|---|---|
| Current Rating (Max) | 200 mA |
| DC Resistance (DCR) (Max) | 800 mOhm |
| Filter Type | Signal Line, Power |
| Height (Max) | 0.013 in |
| Impedance | 120 Ohms |
| Mounting Type | Surface Mount |
| Number of Lines | 1 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | 0201 (0603 Metric) |
| Size / Dimension Length | 0.024 in |
| Size / Dimension Width | 0.012 in |
