1513472-8

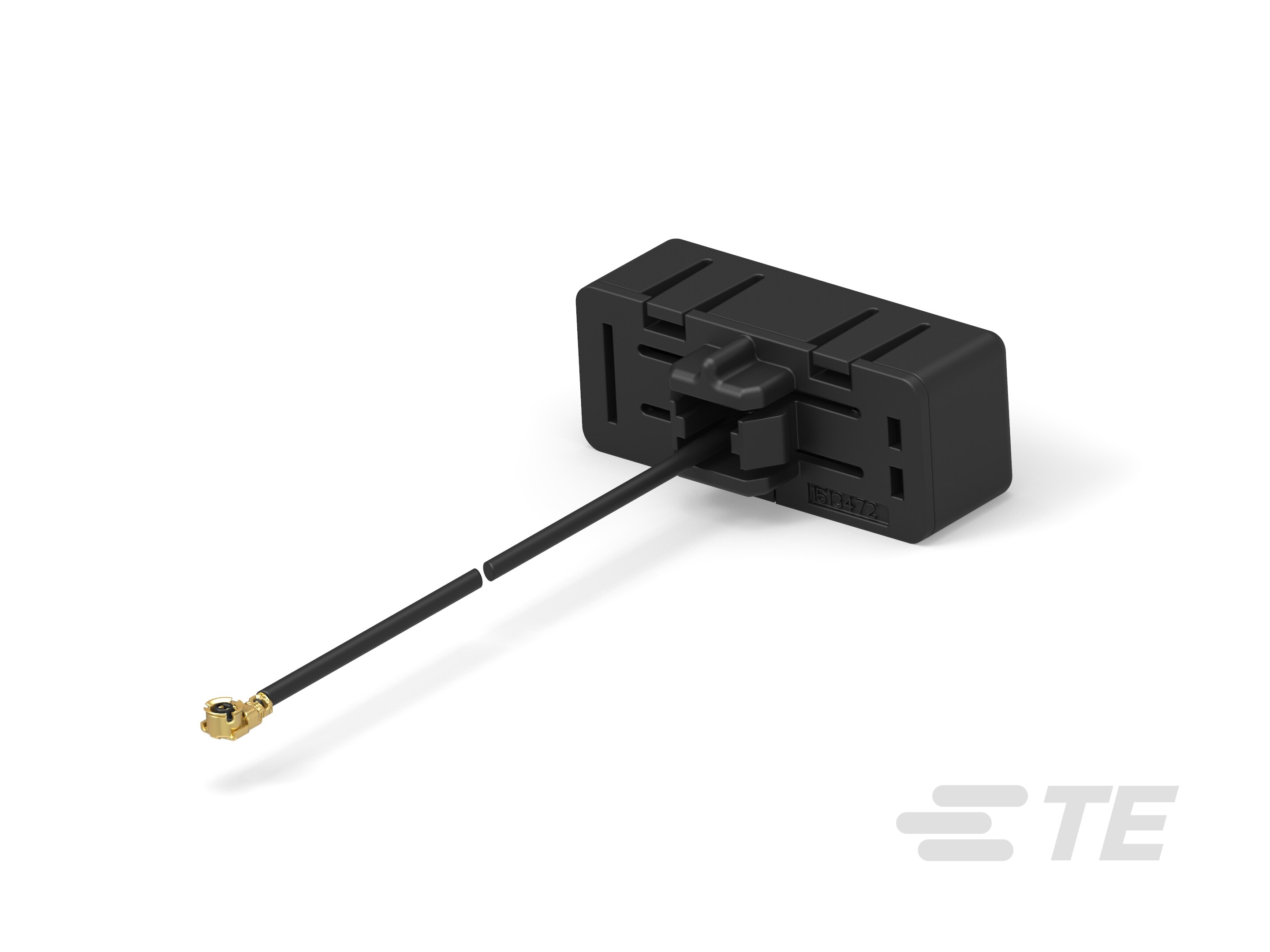

Stamped Metal Antenna, Dual Band, Bluetooth / Wi-Fi, External Mount, Snap-In, MHF / MHF1 / UMCC, Omnidirectional, Single Port, 3 < 6 dBi Peak Gain
Technical Specifications
Parameters and characteristics for this part
| Specification | 1513472-8 |
|---|---|
| Antenna Type | Module |
| Applications | WLAN, Wi-Fi, 802.11a/b/g/n, Bluetooth, Zigbee™ |
| Cable Length | 250 mm |
| Features | 250mm, Cable |
| Frequency (Band) | 5.5125 GHz |
| Frequency (Center) | 2.44175 GHz |
| Frequency Group | SHF, UHF |
| Frequency Group Maximum (UHF) | 3 GHz |
| Frequency Group Minimum (SHF) | 4 GHz |
| Frequency Group Minimum (UHF) | 2 GHz |
| Frequency Range (Band 1) Maximum | 2.4835 GHz |
| Frequency Range (Band 1) Minimum | 2.4 GHz |
| Frequency Range (Band 2) Maximum | 5.875 GHz |
| Frequency Range (Band 2) Minimum | 5.15 GHz |
| Gain | 3 dBi |
| Height (Max) | 0.394 in |
| Mounting Type | Panel Mount |
| Number of Bands | 2 |
| Power - Max | 10 VA |
| RF Family/Standard | 802.15.4, Bluetooth, WiFi |
| Termination Type | U.FL, I-PEX MHF1 |
| VSWR | 3 |
