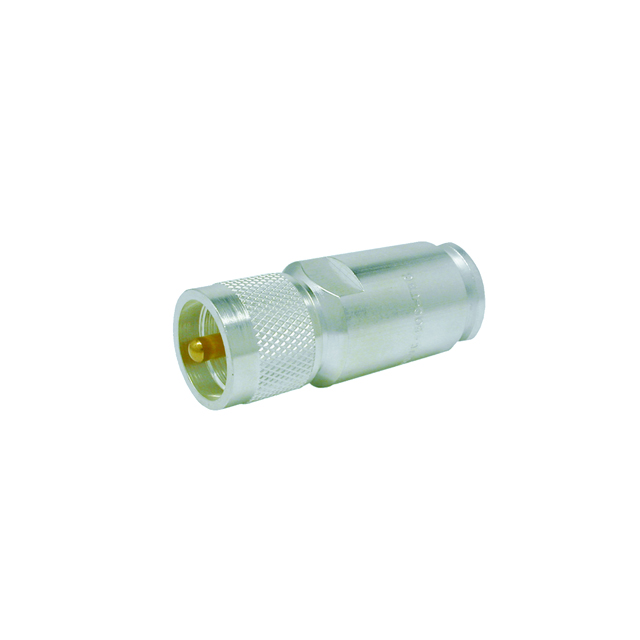

Specification	TC-500-UMC

Body Finish	Silver
Body Material	Brass
Cable Group	LMR-500
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	UHF
Connector Type	Male Pin, Plug
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Threaded
Frequency - Max	500 MHz
Housing Color	Silver
Impedance	50 Ohm
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature (Max)	165 °C
Operating Temperature (Min)	-65 °C
Shield Termination	Clamp
Voltage Rating	500 V

TC-500 Series

Part	Center Contact Plating	Mating Cycles	Dielectric Material	Body Material	Operating Temperature (Max)	Operating Temperature (Min)	Body Finish	Impedance	Connector Type	Number of Ports	Shield Termination	Housing Color	Cable Group	Center Contact Material	Mounting Type	Contact Termination	Fastening Type	Frequency - Max	Connector Style	Voltage Rating	Insertion Loss
McGill Microwave Systems TC-500-TM-X	Gold	500 cycles	Polytetrafluoroethylene (PTFE)	Brass	125 °C	-55 °C	White Bronze	50 Ohm	Male Pin Plug	1	Crimp	Silver	LMR-500	Brass	Free Hanging (In-Line)	Solder	Threaded	6000 MHz	TNC
McGill Microwave Systems TC-500-NF-LP
McGill Microwave Systems TC-500-NMH-RA-D	Gold	500 cycles	Polytetrafluoroethylene (PTFE)	Brass	155 °C	-55 °C	White Bronze	50 Ohm	Male Pin Plug	1	Crimp	Silver	LMR-500	Brass	Free Hanging (In-Line) Right Angle	Solder	Threaded	6000 MHz	N Type	500 V
McGill Microwave Systems TC-500-4310M-LP
McGill Microwave Systems TC-500-716F-LP
McGill Microwave Systems TC-500-716M-RA-D	Silver	500 cycles	Polytetrafluoroethylene (PTFE)	Brass	125 °C	-40 °C	White Bronze	50 Ohm	Male Pin Plug	1	Crimp	Silver	LMR-500	Brass	Free Hanging (In-Line) Right Angle	Solder	Threaded	3 GHz	7/16 DIN
McGill Microwave Systems TC-500-NMH-X	Gold		Polytetrafluoroethylene (PTFE)	Brass	125 °C	-40 °C	White Bronze	50 Ohm	Male Pin Plug	1	Crimp	Silver	LMR-500	Brass	Free Hanging (In-Line) Right Angle	Solder	Threaded	6000 MHz	N Type		0.1 dB
McGill Microwave Systems TC-500-NM-LP
McGill Microwave Systems TC-500-4310M-RA-LP
McGill Microwave Systems TC-500-716M-X
