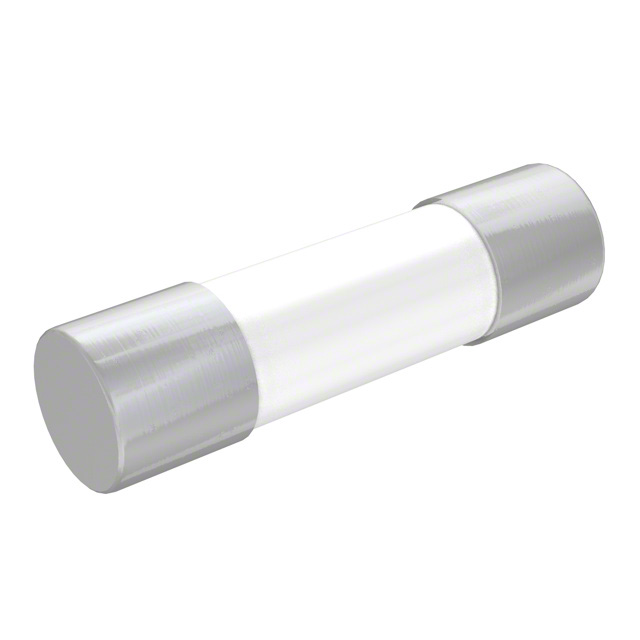

FWC-3A10F
ActiveEaton - Electronics Division
FUSE CARTRIDGE 3A 700VAC/700VDC
FWC-3A10F
ActiveEaton - Electronics Division
FUSE CARTRIDGE 3A 700VAC/700VDC
Description
General part information
FWC-3A10F
3A 700 VAC 700 VDC Fuse Cartridge Requires Holder
Technical Specifications
Parameters and characteristics for this part
| Specification | FWC-3A10F |
|---|---|
| Approval Agency | CE, UL |
| Breaking Capacity (AC) | 200 kA |
| Breaking Capacity (DC) | 10 kA |
| Current Rating | 3 A |
| Fuse Type | Cartridge |
| Melting I²t | 1.6 |
| Mounting Type | Requires Holder |
| Package / Case | 5AG, 10mm x 38mm (Midget) |
| Package Features | Midget |
| Package Length | 10 mm |
| Package Name | 5AG Midget, 5AG |
| Package Width | 38 mm |
| Size / Dimension Diameter | 0.252 in |
| Size / Dimension Length | 1.252 in |
| Voltage Rating - AC | 700 V |
| Voltage Rating - DC | 700 VDC |
