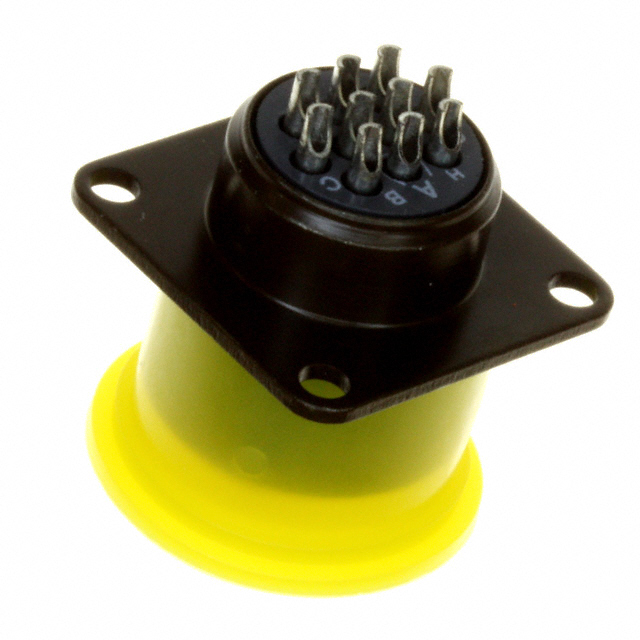

Specification	85102E1210S50

Applications	Military, Aviation, Industrial
Color	Olive Green
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Current Rating	7.5 A
Fastening Type	Bayonet Lock
Ingress Protection Description	Dust Tight, Water Resistant
Ingress Protection IP Rating	IP65
Insert Material	Neoprene
Material Flammability Rating	UL94 HB
Mounting Feature	Flange
Mounting Type	Panel Mount
Number of Positions	10
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-55 °C
Orientation	N (Normal)
Primary Material	Metal
Qualification	MIL-DTL-26482
Shell Finish	Olive Green Cadmium
Shell Material	Aluminum Alloy
Shell Size - Insert Length	12 mm
Shell Size - Insert Width	10 mm
Shielding	Shielded
Termination	Solder Cup
