L000549-06
ActiveTE Connectivity AMP Connectors

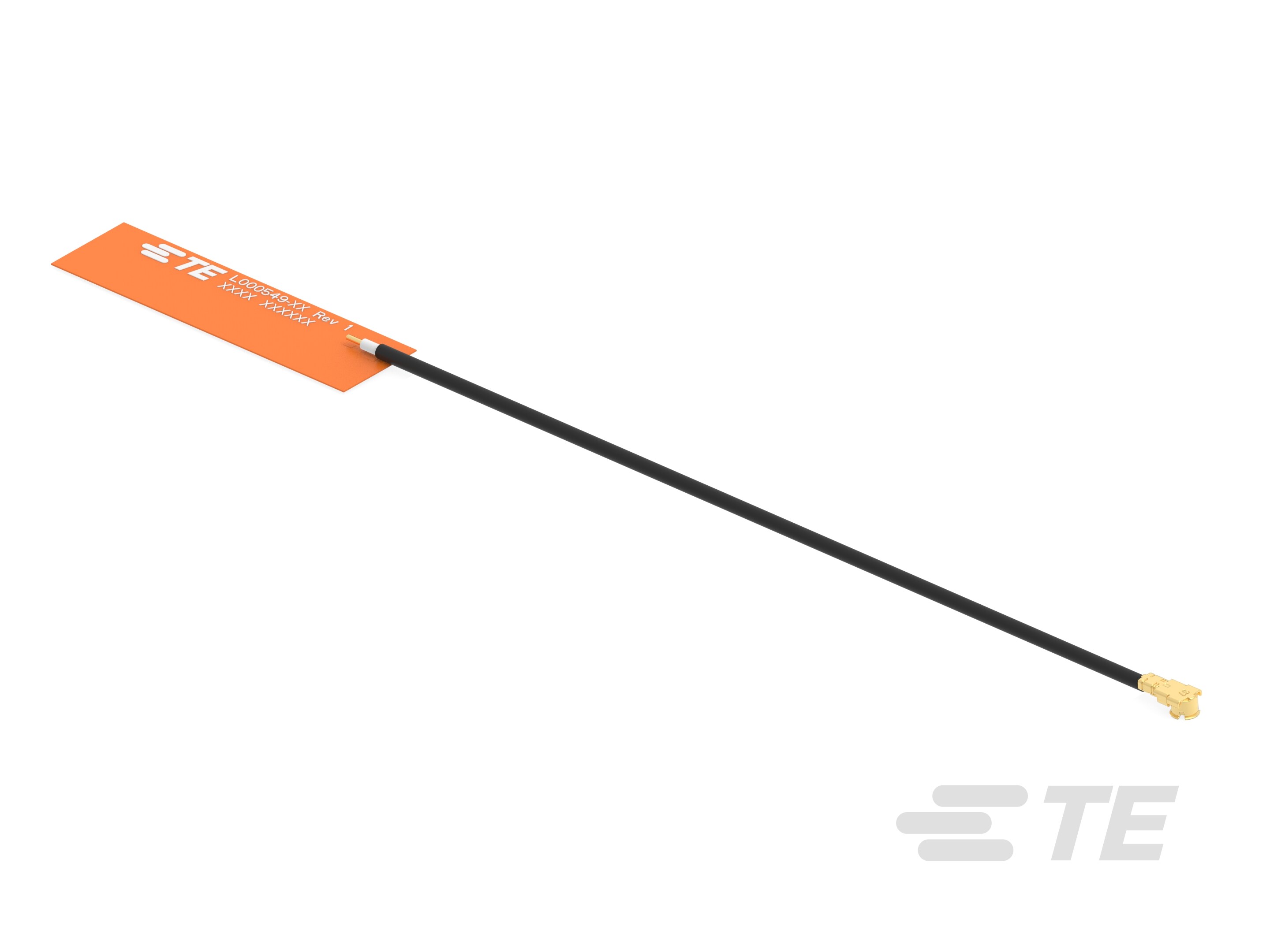

FPC ANT, VDP, 150MM, MHF4, LPWAN 915MHZ
L000549-06
ActiveTE Connectivity AMP Connectors
FPC ANT, VDP, 150MM, MHF4, LPWAN 915MHZ
Description
General part information
L000549-06
Flexible PCB (FPC) Antenna, Single Band, ISM, Internal/Embedded Mount, Adhesive Mount, MHF4, Omnidirectional, Single Port, 3 < 6 dBi Peak Gain
Technical Specifications
Parameters and characteristics for this part
| Specification | L000549-06 |
|---|---|
| Antenna Type | Flat Patch |
| Applications | ISM, LoRaWAN |
| Features | Cable, 150mm |
| Frequency (Center/Band) | 915 MHz |
| Frequency Group | UHF |
| Frequency Group Maximum (UHF) | 1 GHz |
| Frequency Group Minimum (UHF) | 300 MHz |
| Frequency Range (Max) | 928 MHz |
| Frequency Range (Min) | 902 MHz |
| Gain | 3.2 dBi |
| Height (Max) | 0.079 in |
| Mounting Type | Adhesive |
| Number of Bands | 1 |
| Power - Max | 10 VA |
| RF Family/Standard | General ISM |
| Termination | MHF4L |
| VSWR | 2 |
