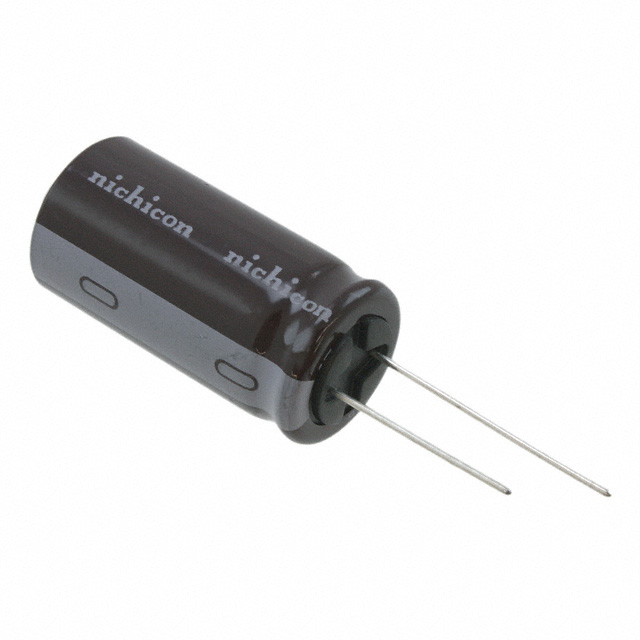

Specification	UPM1C682MHD

Applications	Automotive
Capacitance	6800 µF
Height - Seated (Max)	1.476 in
Impedance	18 mOhm
Lead Spacing	0.295 in
Lifetime	5000 Hrs
Mounting Type	Through Hole
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-55 °C
Package / Case	Can, Radial
Polarization	Polar
Ratings	AEC-Q200
Ripple Current	2.74 A, 3.05 A
Size / Dimension Diameter	0.709 in
Tolerance	20 %
Voltage - Rated	16 V

UPM Series

Part	Operating Temperature (Min)	Operating Temperature (Max)	Lifetime	Applications	Ripple Current	Tolerance	Impedance	Polarization	Package / Case	Voltage - Rated	Capacitance	Size / Dimension Diameter	Lead Spacing	Height - Seated (Max)	Mounting Type	Ratings
Nichicon UPM1J221MHD6TN	-55 °C	105 °C	5000 Hrs	Automotive	1.12 A 820 mA	20 %	70 mOhms	Polar	Can Radial	63 V	220 µF	0.63 in	0.295 in	0.669 in	Through Hole	AEC-Q200
Nichicon UPM1A152MHD6TN	-55 °C	105 °C	5000 Hrs	Automotive	1.19 A 1.33 A	20 %	50 mOhm	Polar	Can Radial	10 V	1500 µF	0.63 in	0.295 in	0.669 in	Through Hole	AEC-Q200
Nichicon UPM2G010MPD	-40 °C	105 °C	5000 Hrs	Automotive	17 mA 27.2 mA	20 %		Polar	Can Radial	400 V	1 µF	0.394 in	0.197 in	0.571 in	Through Hole	AEC-Q200
Nichicon UPM1A222MHD6TN	-55 °C	105 °C	5000 Hrs	Automotive	1.44 A 1.6 A	20 %	39 mOhms	Polar	Can Radial	10 V	2200 ĄF	0.709 in	0.295 in	0.669 in	Through Hole	AEC-Q200
Nichicon UPM1K391MHD6TN	-55 °C	105 °C	5000 Hrs	Automotive	1.12 A 1.45 A	20 %	89 mOhm	Polar	Can Radial	80 Vp-p	390 µF	0.709 in	0.295 in	0.866 in	Through Hole	AEC-Q200
Nichicon UPM1V681MHD1TO	-55 °C	105 °C	5000 Hrs	Automotive	1.41 A 1.7 A	20 %	36 mOhms	Polar	Can Radial	35 V	680 µF	0.492 in	0.197 in	1.063 in	Through Hole	AEC-Q200
Nichicon UPM1C102MPD1AA	-55 °C	105 °C	5000 Hrs	Automotive	1.22 A 1.41 A	20 %	47 mOhm	Polar	Can Radial	16 V	1 mF	0.394 in	0.197 in	1.28 in	Through Hole	AEC-Q200
Nichicon UPM1V182MHD6	-55 °C	105 °C	5000 Hrs	Automotive	2.11 A 2.35 A	20 %	25 mOhms	Polar	Can Radial	35 V	1800 µF	0.709 in	0.295 in	1.063 in	Through Hole	AEC-Q200
Nichicon UPM1C221MPD	-55 °C	105 °C	3000 Hrs	Automotive	335 mA	20 %	0.16 Ohms	Polar	Can Radial	16 V	220 µF	0.315 in	0.138 in	0.512 in	Through Hole	AEC-Q200
Nichicon UPM1A222MHD1AA	-55 °C	105 °C	5000 Hrs	Automotive	1.53 A 1.71 A	20 %	34 mOhm	Polar	Can Radial	10 V	2.2 mF	0.492 in	0.197 in	1.063 in	Through Hole	AEC-Q200
