Description
General part information

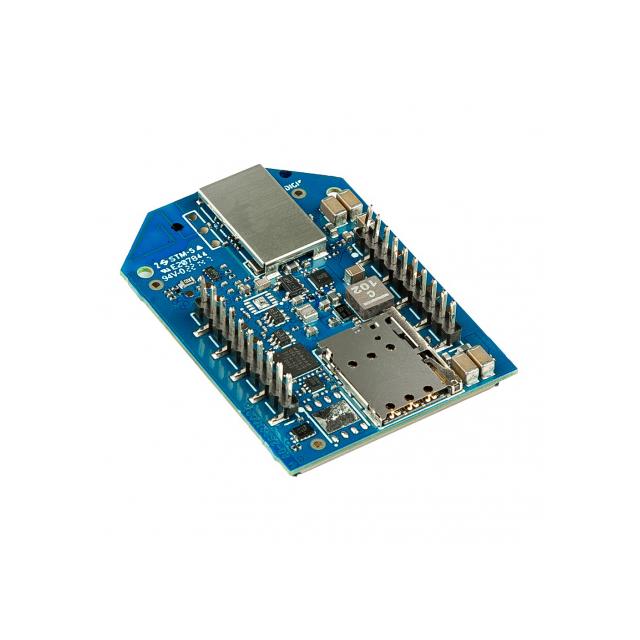

WRL-22330
Bluetooth, Cellular Bluetooth, GNSS, LTE Transceiver Module Antenna Not Included, U.FL Through Hole
Technical Specifications
Parameters and characteristics for this part
| Specification | WRL-22330 |
|---|---|
| Antenna Type | Antenna Not Included, U.FL |
| Current - Receiving | 320 mA |
| Current - Transmitting | 890 mA |
| Data Rate | 10 Mbps |
| Memory Size (Flash) | 8 MB |
| Memory Size (RAM) | 64 kB |
| Memory Size (SRAM) | 64 kB |
| Memory Type | RAM, Flash |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 80 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | 20-DIP Module |
| Power - Output | 23.5 dBm |
| Protocol | LTE, GNSS, Bluetooth |
| RF Family/Standard | Bluetooth, Cellular |
| Sensitivity | -110 dBm |
| Serial Interfaces | SPI, USB, UART |
| Utilized IC / Part | PLS63-X |
| Voltage - Supply (Maximum) | 5.5 V |
| Voltage - Supply (Minimum) | 2.8 V |
