LSA61-D1PF-S12

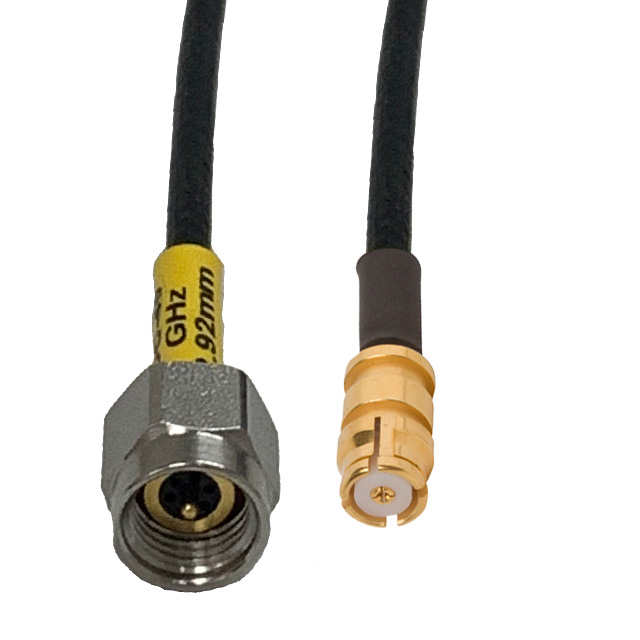

Cable Assembly Coaxial SMP to 2.92mm 2.18mm OD Coaxial Cable 12.00" (304.80mm)
Technical Specifications
Parameters and characteristics for this part
| Specification | LSA61-D1PF-S12 |
|---|---|
| 1st Connector | Plug |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Connector Size | 2.92 mm |
| 1st Contact Gender | Male |
| 2nd Connector | SMP Jack |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Female |
| Cable Impedance | 50 Ohms |
| Cable Outer Diameter | 2.18 mm |
| Cable Type | Coaxial Cable, 2.18mm OD Coaxial Cable, OD Coaxial Cable |
| Cable Type Size | 2.18 |
| Color | Black |
| Connector Impedance | 50 Ohms |
| Features | Shielded |
| Frequency - Max | 40 Gbps |
| Length | 12 in |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Overall Impedance | 50 Ohms |
| Style | SMP to 2.92mm |
