2324794-3
ActiveTE Connectivity AMP Connectors

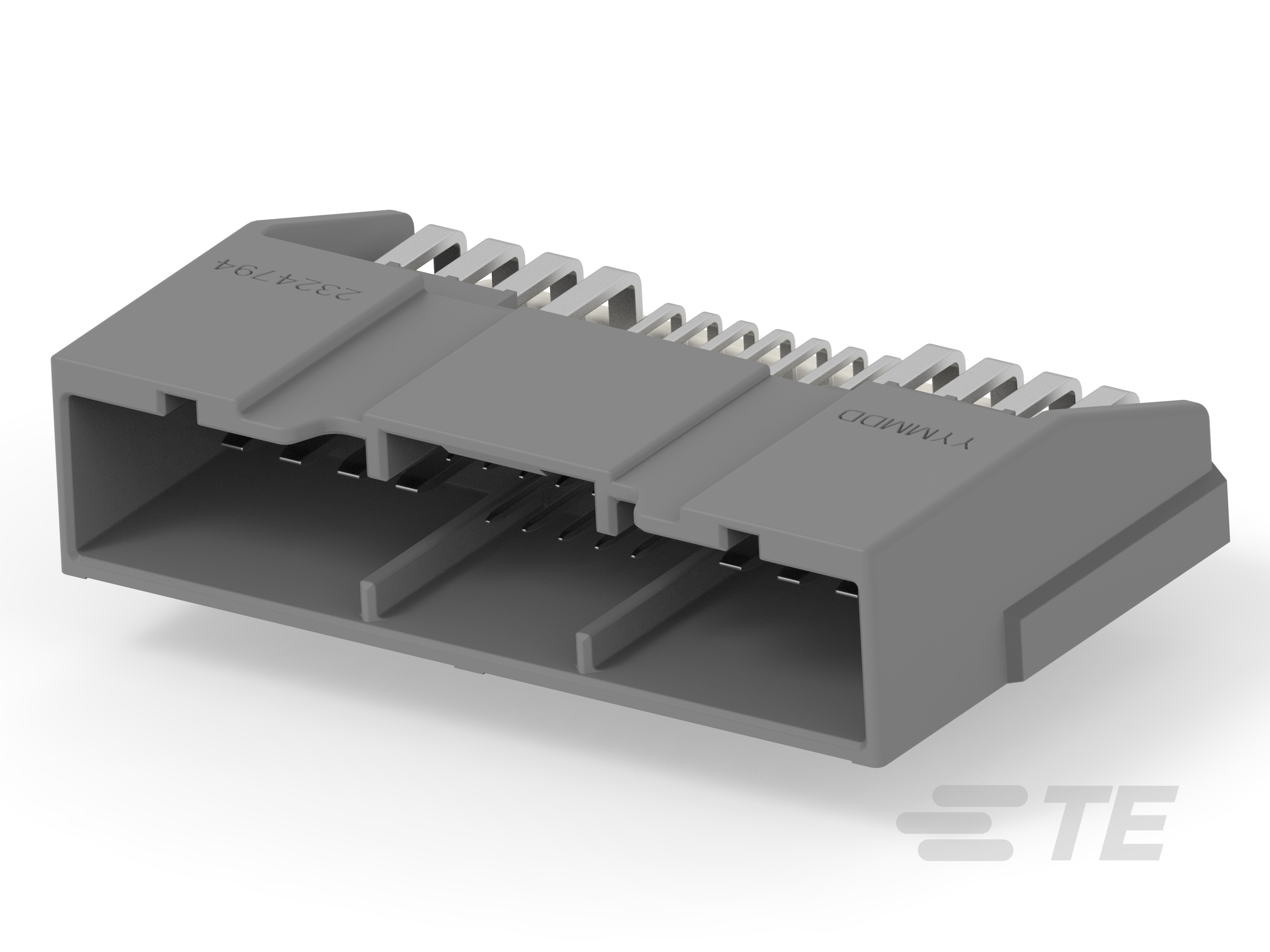

28POS,HYBRID,HDR ASSY,90DEG,GRY
2324794-3
ActiveTE Connectivity AMP Connectors
28POS,HYBRID,HDR ASSY,90DEG,GRY
Description
General part information
2324794-3
Horizontal, Wire-to-Board, 28 Position, 2 Rows, 2mm / 3.2mm [.078in / .125in] Centerline, Tin (Sn), Printed Circuit Board, Gray, Board Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | 2324794-3 |
|---|---|
| Connector Type | Header |
| Contact Finish - Mating | Tin |
| Contact Finish - Post | Tin |
| Contact Finish Thickness - Mating | 78.7 Ąin |
| Contact Length - Mating | 0.264 in |
| Contact Shape | Rectangular |
| Contact Type | Tab |
| Fastening Type | Latch Holder |
| Features | Board Guide |
| Insulation Color | Gray |
| Insulation Height | 0.433 in |
| Insulation Material | Glass Filled, Liquid Crystal Polymer (LCP) |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 28 |
| Number of Positions Loaded | All |
| Number of Rows | 2 |
| Shrouding | Shrouded - 4 Wall |
| Style | Cable/Wire, Board |
| Termination | Solder |
