LMR-300-UF-100M
ActiveMcGill Microwave Systems

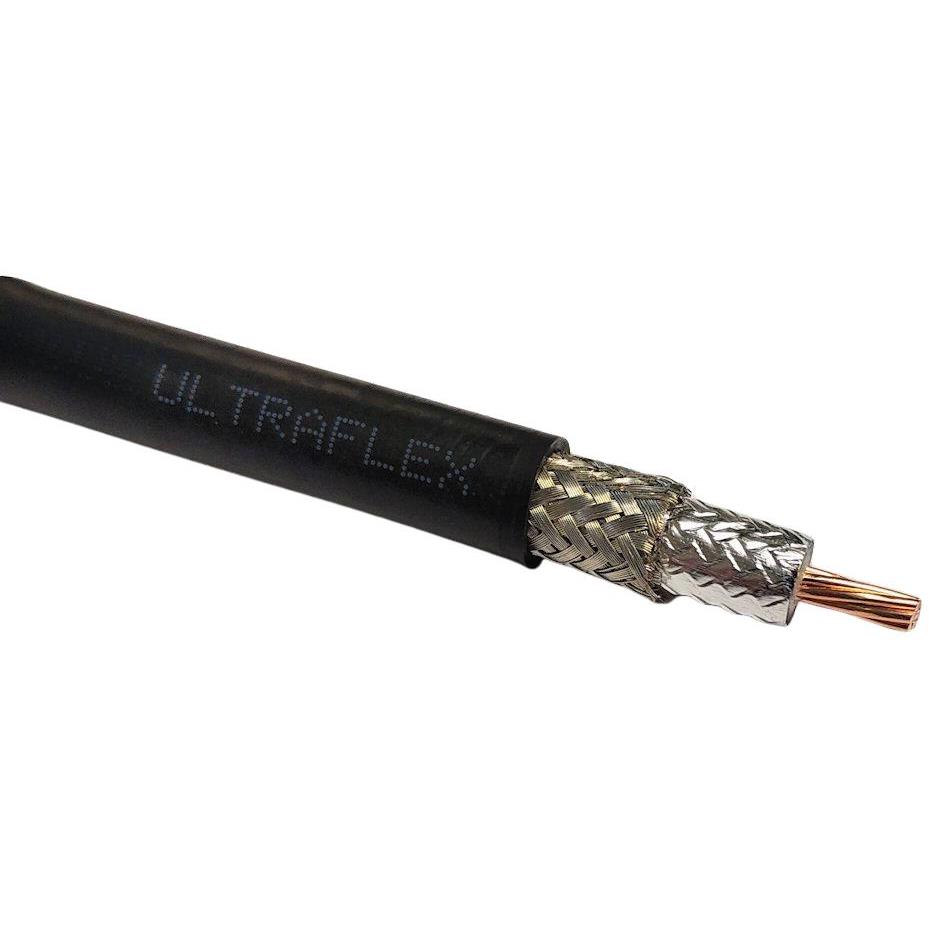

LMR-300-UF COAX 100M(328FT)
LMR-300-UF-100M
ActiveMcGill Microwave Systems
LMR-300-UF COAX 100M(328FT)
Description
General part information
LMR-300-UF-100M
Coaxial - Riser Cable LMR-300 328.1' (100.00m) 50 Ohms
Technical Specifications
Parameters and characteristics for this part
| Specification | LMR-300-UF-100M |
|---|---|
| Cable Group | LMR-300 |
| Cable Type | Riser, Coaxial |
| Conductor Material | Copper, Bare |
| Conductor Strand | Solid |
| Dielectric Diameter | 0.19 in |
| Dielectric Material | Foam Polyethylene (FPE) |
| Impedance | 50 Ohm |
| Jacket (Insulation) Diameter | 0.3 in |
| Jacket (Insulation) Material | Thermoplastic Elastomer (TPE) |
| Jacket Color | Black |
| Length | 328.1 ft |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Shield Material | Aluminum, Tinned, Copper |
| Shield Type | Braid |
| Velocity of Propagation (VoP) | 85 % |
