RG223-TMRP-TF(QTY:9m)
ActiveMcGill Microwave Systems
COAX CBL RP-TNC TO TNC 29.5'
RG223-TMRP-TF(QTY:9m)
ActiveMcGill Microwave Systems
COAX CBL RP-TNC TO TNC 29.5'
Description
General part information
RG223-TMRP-TF(QTY:9m)

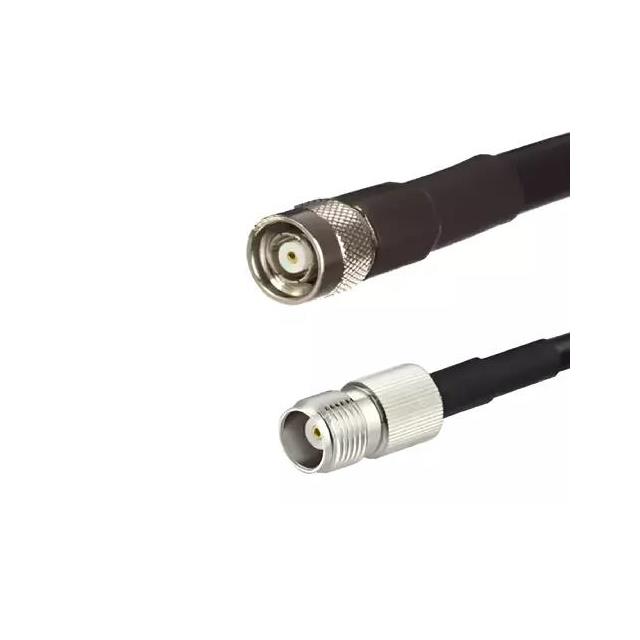

Cable Assembly Coaxial RP-TNC to TNC RG-223 354.3" (9.0m) 29.5'
Technical Specifications
Parameters and characteristics for this part
| Specification | RG223-TMRP-TF(QTY:9m) |
|---|---|
| 1st Connector | RP-TNC Plug |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Female |
| 2nd Connector | TNC Jack |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Female |
| Cable Impedance | 50 Ohms |
| Cable Type | RG-223, 223, RG |
| Color | Black |
| Length | 354.3 " |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Style | TNC, RP-TNC |
