16282-3PG-311

Active

Conxall/Switchcraft

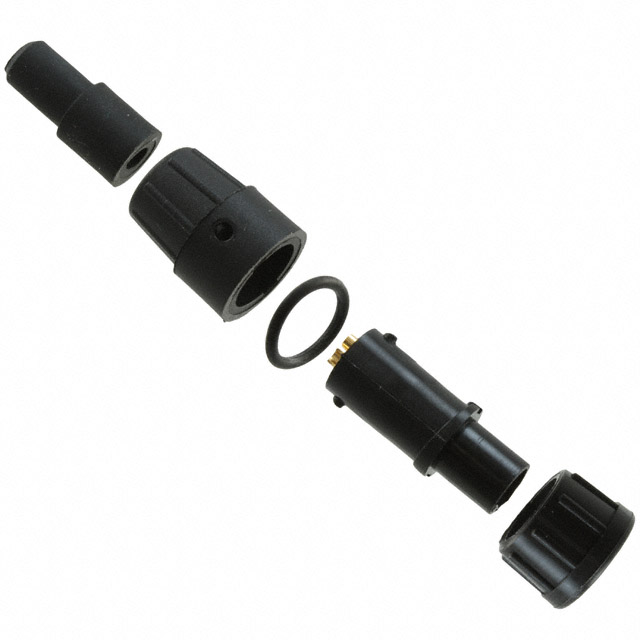

CONN PLUG MALE 3P GOLD SLDR CUP

Search across all available documentation for this part.

Active

Conxall/Switchcraft

CONN PLUG MALE 3P GOLD SLDR CUP

Technical Specifications

Parameters and characteristics for this part

Specification	16282-3PG-311

Applications	Medical, Data, Instrumentation, Industrial
Backshell Material, Plating	Thermoplastic
Cable Opening [diameter]	2.29 mm
Cable Opening [diameter]	0.14 in, 0.09 in
Cable Opening [diameter]	3.56 mm
Color	Black
Connector Type	Plug, Male Pins
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	7.5 A
Fastening Type	Bayonet Lock
Features	Backshell
Ingress Protection	IP67 - Dust Tight, Waterproof
Material Flammability Rating	UL94 HB
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Plastic
Shielding	Unshielded
Voltage Rating	600 VAC

CONN PLUG MALE 3P GOLD SLDR CUP

Part	Cable Opening [diameter]	Cable Opening [diameter]	Cable Opening [diameter]	Operating Temperature [Max]	Operating Temperature [Min]	Voltage Rating	Shielding	Primary Material	Connector Type	Fastening Type	Contact Material	Color	Current Rating (Amps)	Backshell Material, Plating	Contact Finish - Mating	Features	Ingress Protection	Material Flammability Rating	Mounting Type	Orientation	Applications
Conxall/Switchcraft 16282-3PG-311	2.29 mm	0.09 in, 0.14 in	3.56 mm	85 °C	-40 °C	600 VAC	Unshielded	Plastic	Male Pins, Plug	Bayonet Lock	Copper Alloy	Black	7.5 A	Thermoplastic	Gold	Backshell	IP67 - Dust Tight, Waterproof	UL94 HB	Free Hanging (In-Line)	Keyed	Data, Industrial, Instrumentation, Medical

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

3 Position Circular Connector Plug, Male Pins Solder Cup
