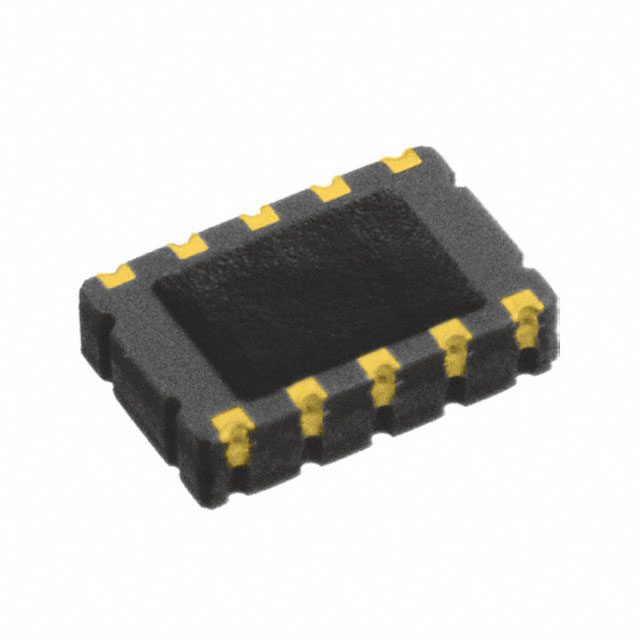

RV-8564-C2-32.768KHZ-10PPM-TA-QC
ObsoleteMicro Crystal AG
IC RTC CLK/CALENDAR I2C 10SON
RV-8564-C2-32.768KHZ-10PPM-TA-QC
ObsoleteMicro Crystal AG
IC RTC CLK/CALENDAR I2C 10SON
Description
General part information
RV-8564-C2-32.768KHZ-10PPM-TA-QC
Real Time Clock (RTC) IC Clock/Calendar I2C, 2-Wire Serial 10-TDFN Exposed Pad
Technical Specifications
Parameters and characteristics for this part
| Specification | RV-8564-C2-32.768KHZ-10PPM-TA-QC |
|---|---|
| Current - Timekeeping (Max) | 0.35 µA |
| Date Format | YY-MM-DD-dd |
| Features | Alarm, Leap Year, Timer, Programmable Clock Output |
| Interface | I2C, 2-Wire Serial |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | 10-TDFN Exposed Pad |
| Package Length | 5 mm |
| Package Name | 10-SON |
| Package Width | 3.2 mm |
| Time Format | HH:MM:SS (24 hr) |
| Type | Clock/Calendar |
| Voltage - Supply (Maximum) | 5.5 V |
| Voltage - Supply (Minimum) | 1 V |
