761KS15

Active

Switchcraft Inc.

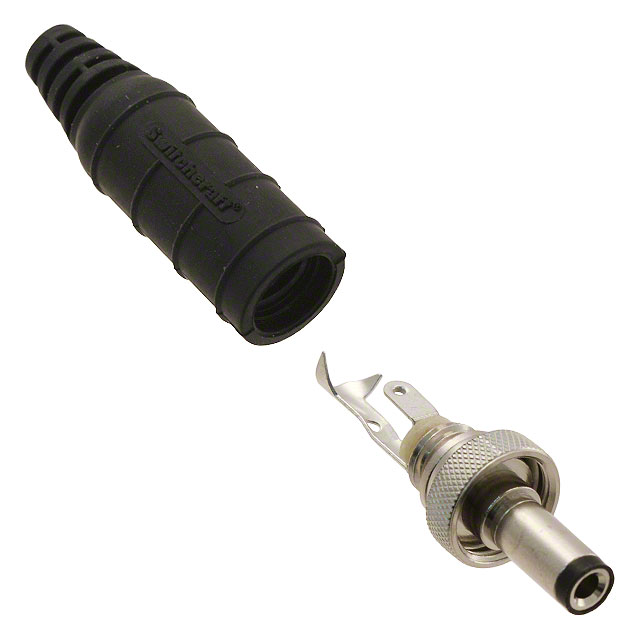

CONN POWER PL 2 POS ST CABLE MOUNT 2 TERMINAL 1 PORT

Search across all available documentation for this part.

Active

Switchcraft Inc.

CONN POWER PL 2 POS ST CABLE MOUNT 2 TERMINAL 1 PORT

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	761KS15	761K Series

	-	-
Actual Diameter [custom]	2.5 mm	2.5 mm
Actual Diameter [custom]	0.098 "	0.098 "
Actual Diameter [custom]	0.217 "	0.217 "
Actual Diameter [custom]	5.5 mm	5.5 mm
Body Color	Silver, Black	Silver, Black
Body Material	Copper Alloy	Copper Alloy
Connector Type	Plug	Plug
Contact Material	Copper Alloy	Copper Alloy
Contact Material - Plating	Tin	Tin
Current Rating (Amps)	5 A	5 A
Features	Cable Clamp, Thread Lock	Cable Clamp, Thread Lock
Gender	Female	Female
Housing Material	Thermoplastic	Thermoplastic
Includes	1 Connector, 1 Handle	1 Connector, 1 Handle
Industry Recognized Mating Diameter [diameter]	5.5 mm, 2.5 mm	2.5 - 5.5 mm
Industry Recognized Mating Diameter [diameter]	0.098 ", 0.217 "	0.098 - 0.217 "
Ingress Protection	IP68	IP68
Insulation Color	Black	Black
Internal Switch(s)	False	False
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Positions/Contacts [custom]	2	2
Number of Positions/Contacts [custom]	2	2
Shielding	Unshielded	Unshielded
Termination	Solder Eyelet(s)	Solder Eyelet(s)
Voltage - Rated	30 V	30 V

CONN PWR PLUG 2.5X5.5MM SOLDER

Part	Gender	Shielding	Connector Type	Termination	Contact Material	Contact Material - Plating	Housing Material	Number of Positions/Contacts [custom]	Number of Positions/Contacts [custom]	Body Material	Ingress Protection	Insulation Color	Current Rating (Amps)	Includes	Actual Diameter [custom]	Actual Diameter [custom]	Actual Diameter [custom]	Actual Diameter [custom]	Industry Recognized Mating Diameter [diameter]	Industry Recognized Mating Diameter [diameter]	Body Color	Voltage - Rated	Mounting Type	Features
Switchcraft Inc. 761KS17	Female	Unshielded	Plug	Solder Eyelet(s)	Copper Alloy	Tin	Thermoplastic	2	2	Copper Alloy	IP68	Black	5 A	1 Connector, 1 Handle	2.5 mm	0.098 "	0.217 "	5.5 mm	2.5 mm, 5.5 mm	0.098 ", 0.217 "	Black, Silver	30 V	Free Hanging (In-Line)	Cable Clamp, Thread Lock
Switchcraft Inc. 761KS15	Female	Unshielded	Plug	Solder Eyelet(s)	Copper Alloy	Tin	Thermoplastic	2	2	Copper Alloy	IP68	Black	5 A	1 Connector, 1 Handle	2.5 mm	0.098 "	0.217 "	5.5 mm	2.5 mm, 5.5 mm	0.098 ", 0.217 "	Black, Silver	30 V	Free Hanging (In-Line)	Cable Clamp, Thread Lock
Switchcraft Inc. 761KH
Switchcraft Inc. 761KS12	Female	Unshielded	Plug	Solder Eyelet(s)	Copper Alloy	Tin	Thermoplastic	2	2	Copper Alloy	IP68	Black	5 A	1 Connector, 1 Handle	2.5 mm	0.098 "	0.217 "	5.5 mm	2.5 mm, 5.5 mm	0.098 ", 0.217 "	Black, Silver	30 V	Free Hanging (In-Line)	Cable Clamp, Thread Lock

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Power Barrel Connector Plug 2.50mm ID (0.098"), 5.50mm OD (0.217") Free Hanging (In-Line)
