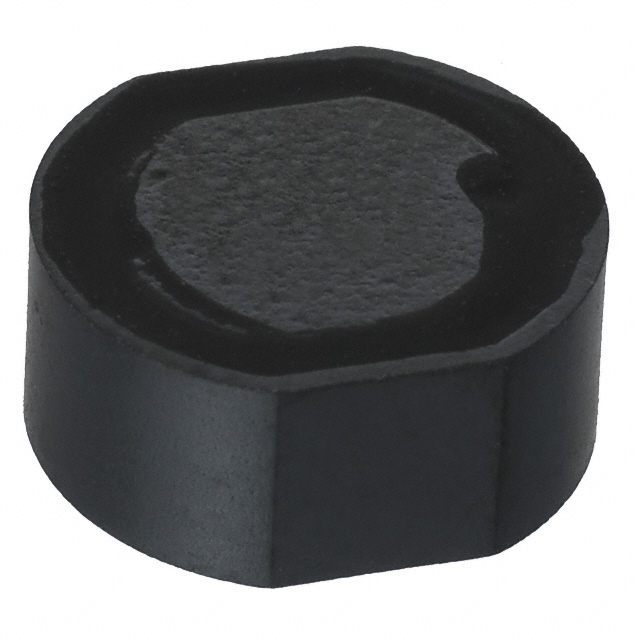

CDR105NP-100MC
ObsoleteSumida America Components Inc.
FIXED IND 10UH 2.53A 60 MOHM SMD
CDR105NP-100MC
ObsoleteSumida America Components Inc.
FIXED IND 10UH 2.53A 60 MOHM SMD
Description
General part information
CDR105NP-100MC
10 µH Shielded Inductor 2.53 A 60mOhm Max Nonstandard
Technical Specifications
Parameters and characteristics for this part
| Specification | CDR105NP-100MC |
|---|---|
| Current Rating | 2.53 A |
| DC Resistance (DCR) (Max) | 60 mOhm |
| Frequency - Self Resonant | 31 MHz |
| Height - Seated (Max) | 0.217 in |
| Inductance | 10 µH |
| Inductance Frequency - Test | 2.52 MHz |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 100 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Nonstandard |
| Shielding | Shielded |
| Size / Dimension Length | 0.394 in |
| Size / Dimension Width | 0.362 in |
| Tolerance (Negative) | 15 % |
| Tolerance (Positive) | 20 % |
