35HDNAU
ActiveSwitchcraft Inc.
CONN PLUG STEREO 3.5MM 3COND
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet

35HDNAU
ActiveSwitchcraft Inc.
CONN PLUG STEREO 3.5MM 3COND
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
Specification | 35HDNAU | 35HDNA Series |
---|---|---|
Actual Diameter [diameter] | 0.138 " | 0.138 " |
Actual Diameter [diameter] | 3.5 mm | 3.5 mm |
Body Color | Silver | Silver |
Body Material | Brass | Brass |
Cable Opening | - | 0.175 in |
Cable Opening | - | 4.44 mm |
Cable Opening [custom] | 7.37 mm | 7.37 mm |
Cable Opening [custom] | 0.29 in | 0.29 in |
Connector Type | Phone Plug | Phone Plug |
Contact Material | Brass | Brass |
Contact Material - Plating [custom] | Gold | Gold |
Current Rating (Amps) | 4 A | 4 A |
Gender | Male | Male |
Housing Material | Brass | Brass |
Includes | 1 Connector, 1 Insulator Tube, 1 Handle | 1 Connector, 1 Insulator Tube, 1 Handle |
Industry Recognized Mating Diameter | 0.141 " | 0.141 " |
Industry Recognized Mating Diameter | 0.125 " | 0.125 " |
Industry Recognized Mating Diameter | 3.5 mm | 3.5 mm |
Internal Switch(s) | False | False |
Mating Length/Depth | 14.2 mm | 14.2 mm |
Mating Length/Depth | 0.56 in | 0.56 in |
Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
Number of Positions/Contacts [custom] | 3 | 3 |
Number of Positions/Contacts [custom] | 3 | 3 |
Shielding | Unshielded | Unshielded |
Signal Lines | Stereo | Stereo |
Termination | Solder | Solder |
35HDNA Series

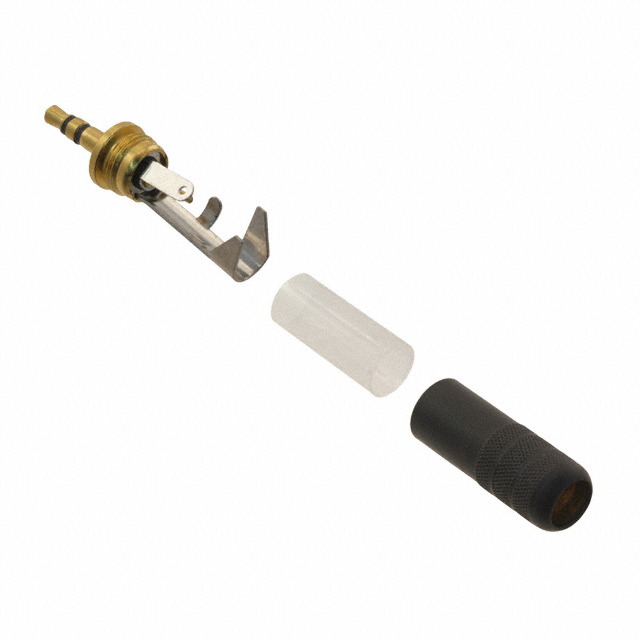

CONN PLUG STEREO 3.5MM 3COND
Part | Internal Switch(s) | Body Material | Signal Lines | Connector Type | Cable Opening [diameter] | Cable Opening [diameter] | Current Rating (Amps) | Contact Material | Mating Length/Depth | Mating Length/Depth | Includes | Termination | Contact Material - Plating [custom] | Number of Positions/Contacts [custom] | Number of Positions/Contacts [custom] | Shielding | Mounting Type | Industry Recognized Mating Diameter | Industry Recognized Mating Diameter | Industry Recognized Mating Diameter | Body Color | Housing Material | Gender | Actual Diameter [diameter] | Actual Diameter [diameter] | Cable Opening [custom] | Cable Opening [custom] |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Switchcraft Inc. 35HDNAUS | Brass | Stereo | Phone Plug | 0.175 in | 4.44 mm | 4 A | Brass | 14.2 mm | 0.56 in | 1 Connector, 1 Handle, 1 Insulator Tube | Solder | Gold | 3 | 3 | Unshielded | Free Hanging (In-Line) | 0.141 " | 0.125 " | 3.5 mm | Silver | Brass | Male | 0.138 " | 3.5 mm | |||
Switchcraft Inc. 35HDNAU | Brass | Stereo | Phone Plug | 4 A | Brass | 14.2 mm | 0.56 in | 1 Connector, 1 Handle, 1 Insulator Tube | Solder | Gold | 3 | 3 | Unshielded | Free Hanging (In-Line) | 0.141 " | 0.125 " | 3.5 mm | Silver | Brass | Male | 0.138 " | 3.5 mm | 7.37 mm | 0.29 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Distributor | Package | Quantity | $ | |
---|---|---|---|---|
Digikey | Bulk | 1 | $ 16.52 | |
10 | $ 12.71 | |||
25 | $ 11.49 | |||
50 | $ 10.67 | |||
100 | $ 9.93 | |||
300 | $ 8.89 | |||
500 | $ 8.46 | |||
1000 | $ 7.92 |
Description
General part information
35HDNA Series
3.50mm (0.141", 1/8", Mini Plug) - Headphone Phone Plug Stereo (3 Conductor, TRS) Connector Solder
