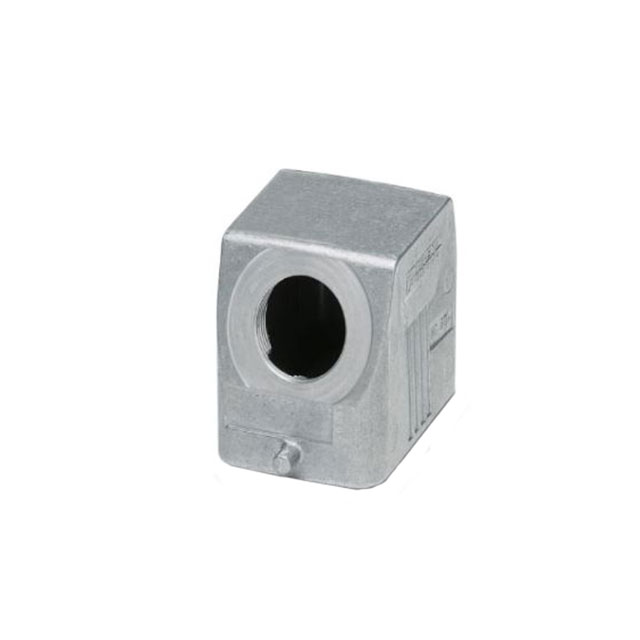

Specification	1412572

Connector Type	Hood
Features	Salt Water Resistant
Housing Material	Die Cast, Aluminum
Ingress Protection Description	Water Resistant, Dust Tight, Waterproof
Ingress Protection IP Rating	IP66, IP69K
Lock Location	Locking Clip (1) on Base Bottom
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-40 °C
Size	B6
Size / Dimension Height	2.047 in
Size / Dimension Length	2.362 in
Size / Dimension Width	1.732 in
Style	Side Entry
Thread Size	PG13.5
