788153-2

Active

TE Connectivity AMP Connectors

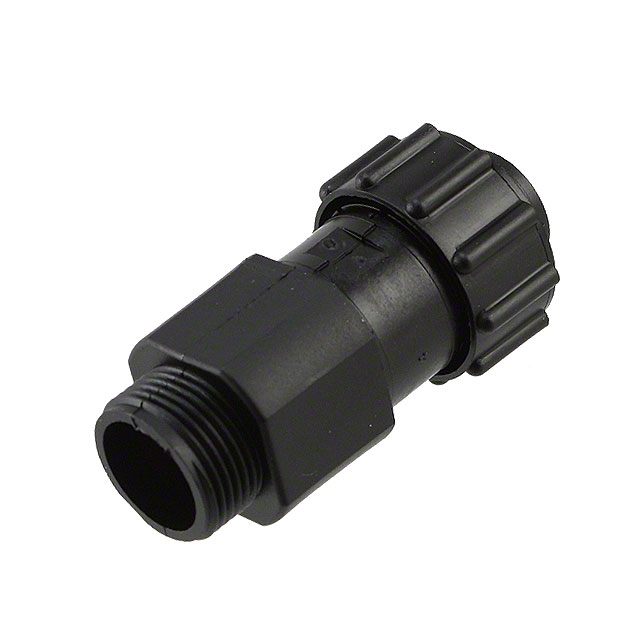

CONN PLUG HSNG MALE 4POS INLINE

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN PLUG HSNG MALE 4POS INLINE

Technical Specifications

Parameters and characteristics for this part

Specification	788153-2

Connector Type	Plug Housing
Contact Shape	Circular
Contact Size	16
Contact Type	Crimp
Features	Coupling Nut, Backshell
Housing Color	Black
Ingress Protection	IP67 - Dust Tight, Waterproof
Insert Material	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	4
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Orientation	Keyed
Shell Material	Polyamide (PA66), Nylon 6/6, Glass Filled
Shell Size - Insert	11-4
Shielding	Unshielded
Type	For Male Pins

CONN PLUG HSNG MALE 4POS INLINE

Part	Operating Temperature [Max]	Operating Temperature [Min]	Shielding	Number of Positions	Contact Shape	Contact Type	Ingress Protection	Orientation	Material Flammability Rating	Contact Size	Shell Material	Mounting Type	Housing Color	Note	Type	Features	Insert Material	Connector Type	Shell Size - Insert
TE Connectivity AMP Connectors 788153-2	105 ░C	-55 °C	Unshielded	4	Circular	Crimp	IP67 - Dust Tight, Waterproof	Keyed	UL94 V-0	16	Polyamide (PA66), Nylon 6/6, Glass Filled	Free Hanging (In-Line)	Black	Contacts Not Included	For Male Pins	Backshell, Coupling Nut	Thermoplastic	Plug Housing	11-4

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

4 Position Circular Connector Plug Housing Free Hanging (In-Line) Backshell, Coupling Nut
