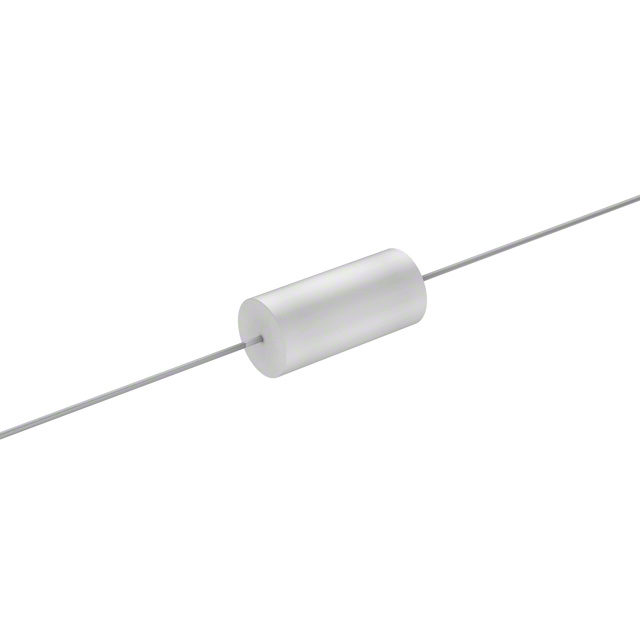

MMWA05P47M
ObsoleteCornell Dubilier Knowles
CAP FILM 0.47UF 20% 50VDC AXIAL
MMWA05P47M
ObsoleteCornell Dubilier Knowles
CAP FILM 0.47UF 20% 50VDC AXIAL
Description
General part information
MMWA05P47M
0.47 µF Film Capacitor 35V 50V Polyester, Metallized Axial
Technical Specifications
Parameters and characteristics for this part
| Specification | MMWA05P47M |
|---|---|
| Applications | General Purpose |
| Capacitance | 0.47 µF |
| Dielectric Material | Polyester, Metallized |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Axial |
| Size / Dimension Diameter | 0.319 in |
| Size / Dimension Length | 0.685 in |
| Termination | PC Pins |
| Tolerance | 20 % |
| Voltage Rating - AC | 35 V |
| Voltage Rating - DC | 50 V |
