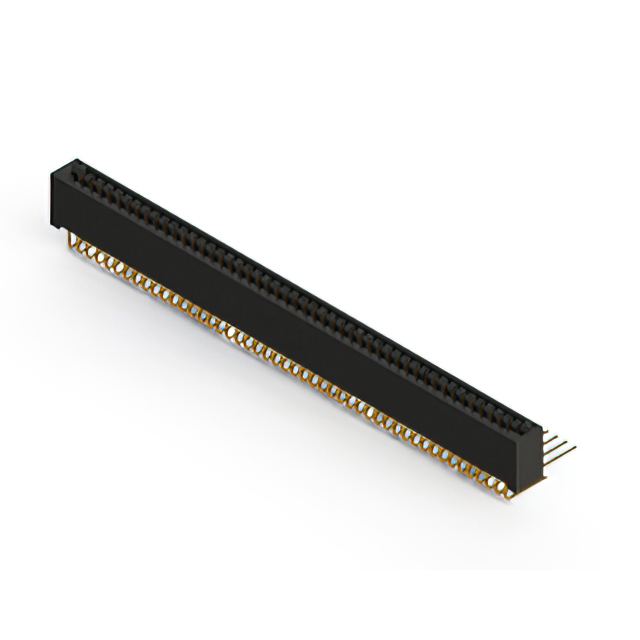

896-096-559-201

Active

EDAC Inc.

CONN EDGE DUAL FMALE 96POS 0.125

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

896-096-559-201

Active

EDAC Inc.

CONN EDGE DUAL FMALE 96POS 0.125

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 101.81

Description

General part information

896-096 Series

96 Position Female Connector Non Specified - Dual Edge Gold 0.125" (3.18mm) Black

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	896-096-559-201	896-096 Series

Card Thickness [Max]	1.78 mm	1.78 mm
Card Thickness [Max]	0.07 in	0.07 in
Card Thickness [Min]	1.37 mm	1.37 mm
Card Thickness [Min]	0.054 "	0.054 "
Card Type	Non Specified - Dual Edge	Non Specified - Dual Edge
Color	Black	Black
Contact Finish	Gold	Gold
Contact Finish Thickness	10 Áin	10 Áin
Contact Finish Thickness	0.25 Ám	0.25 Ám
Contact Material	Copper Alloy	Copper Alloy
Contact Type	Cantilever	Cantilever
Features	-	Card Extender
Flange Feature	-	0.116 - 0.156 in
Flange Feature	-	Floating Bobbin, Flush Mount, Threaded Insert, 4-40, Top Opening, Unthreaded, M3, Top Mount Opening, Side Mount Opening, Side Opening
Flange Feature	-	2.95 - 3.96 mm
Flange Feature	-	3.25 mm
Flange Feature	-	0.128 in
Gender	Female	Female
Material - Insulation	Polyphenylene Sulfide (PPS)	Polyphenylene Sulfide (PPS)
Mounting Type	Through Hole, Right Angle	Board Edge, Straddle Mount, Through Hole, Right Angle, Through Hole
Number of Positions	96	96
Number of Positions/Bay/Row [custom]	48	48
Number of Rows	2	2
Operating Temperature [Max]	125 °C	125 °C
Operating Temperature [Min]	-40 °C	-40 °C
Pitch [x]	0.125 in	0.125 in
Pitch [x]	3.18 mm	3.18 mm
Read Out	Dual	Dual
Termination	Solder	Solder, Solder Eyelet(s), Wire Wrap
Termination Rows	2	2

896-096 Series

CONN EDGE DUAL FMALE 96POS 0.125

...

Part	Material - Insulation	Number of Positions/Bay/Row [custom]	Features	Gender	Flange Feature [diameter]	Flange Feature	Flange Feature [diameter]	Pitch [x]	Pitch [x]	Contact Finish Thickness	Contact Finish Thickness	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Contact Finish	Read Out	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Termination	Termination Rows	Contact Type	Number of Positions	Number of Rows	Contact Material	Card Type	Color
EDAC Inc. 896-096-560-203	Polyphenylene Sulfide (PPS)	48	Card Extender	Female	0.116 in	Floating Bobbin, Flush Mount	2.95 mm	0.125 in	3.18 mm	10 Áin	0.25 Ám	1.37 mm	0.054 "	1.78 mm	0.07 in	Gold	Dual	125 °C	-40 °C	Board Edge, Straddle Mount	Solder	2	Cantilever	96	2	Copper Alloy	Non Specified - Dual Edge	Black
EDAC Inc. 896-096-558-208	Polyphenylene Sulfide (PPS)	48		Female		4-40, Flush Mount, Threaded Insert, Top Opening		0.125 in	3.18 mm	10 Áin	0.25 Ám	1.37 mm	0.054 "	1.78 mm	0.07 in	Gold	Dual	125 °C	-40 °C	Through Hole, Right Angle	Solder	2	Cantilever	96	2	Copper Alloy	Non Specified - Dual Edge	Black
EDAC Inc. 896-096-526-202	Polyphenylene Sulfide (PPS)	48		Female	0.128 "	Flush Mount, Top Opening, Unthreaded	3.25 mm	0.125 in	3.18 mm	10 Áin	0.25 Ám	1.37 mm	0.054 "	1.78 mm	0.07 in	Gold	Dual	125 °C	-40 °C	Through Hole	Solder	2	Cantilever	96	2	Copper Alloy	Non Specified - Dual Edge	Black
EDAC Inc. 896-096-500-202	Polyphenylene Sulfide (PPS)	48		Female	0.128 "	Flush Mount, Top Opening, Unthreaded	3.25 mm	0.125 in	3.18 mm	10 Áin	0.25 Ám	1.37 mm	0.054 "	1.78 mm	0.07 in	Gold	Dual	125 °C	-40 °C	Through Hole	Solder Eyelet(s)	2	Cantilever	96	2	Copper Alloy	Non Specified - Dual Edge	Black
EDAC Inc. 896-096-500-203	Polyphenylene Sulfide (PPS)	48		Female	0.116 in	Floating Bobbin, Flush Mount	2.95 mm	0.125 in	3.18 mm	10 Áin	0.25 Ám	1.37 mm	0.054 "	1.78 mm	0.07 in	Gold	Dual	125 °C	-40 °C	Through Hole	Solder Eyelet(s)	2	Cantilever	96	2	Copper Alloy	Non Specified - Dual Edge	Black
EDAC Inc. 896-096-522-208	Polyphenylene Sulfide (PPS)	48		Female		4-40, Flush Mount, Threaded Insert, Top Opening		0.125 in	3.18 mm	10 Áin	0.25 Ám	1.37 mm	0.054 "	1.78 mm	0.07 in	Gold	Dual	125 °C	-40 °C	Through Hole	Solder	2	Cantilever	96	2	Copper Alloy	Non Specified - Dual Edge	Black
EDAC Inc. 896-096-558-807	Polyphenylene Sulfide (PPS)	48		Female		M3, Threaded Insert, Top Mount Opening		0.125 in	3.18 mm	10 Áin	0.25 Ám	1.37 mm	0.054 "	1.78 mm	0.07 in	Gold	Dual	125 °C	-40 °C	Through Hole, Right Angle	Solder	2	Cantilever	96	2	Copper Alloy	Non Specified - Dual Edge	Black
EDAC Inc. 896-096-522-207	Polyphenylene Sulfide (PPS)	48		Female		Flush Mount, M3, Threaded Insert, Top Opening		0.125 in	3.18 mm	10 Áin	0.25 Ám	1.37 mm	0.054 "	1.78 mm	0.07 in	Gold	Dual	125 °C	-40 °C	Through Hole	Solder	2	Cantilever	96	2	Copper Alloy	Non Specified - Dual Edge	Black
EDAC Inc. 896-096-556-808	Polyphenylene Sulfide (PPS)	48	Card Extender	Female		4-40, Threaded Insert, Top Mount Opening		0.125 in	3.18 mm	10 Áin	0.25 Ám	1.37 mm	0.054 "	1.78 mm	0.07 in	Gold	Dual	125 °C	-40 °C	Board Edge, Straddle Mount	Solder	2	Cantilever	96	2	Copper Alloy	Non Specified - Dual Edge	Black
EDAC Inc. 896-096-541-808	Polyphenylene Sulfide (PPS)	48		Female		4-40, Threaded Insert, Top Mount Opening		0.125 in	3.18 mm	10 Áin	0.25 Ám	1.37 mm	0.054 "	1.78 mm	0.07 in	Gold	Dual	125 °C	-40 °C	Through Hole	Wire Wrap	2	Cantilever	96	2	Copper Alloy	Non Specified - Dual Edge	Black
