21M680K
ActiveGowanda Electronics
MOLDED UNSHIELDED RF COILS AXL
21M680K
ActiveGowanda Electronics
MOLDED UNSHIELDED RF COILS AXL
Description
General part information
21M680K

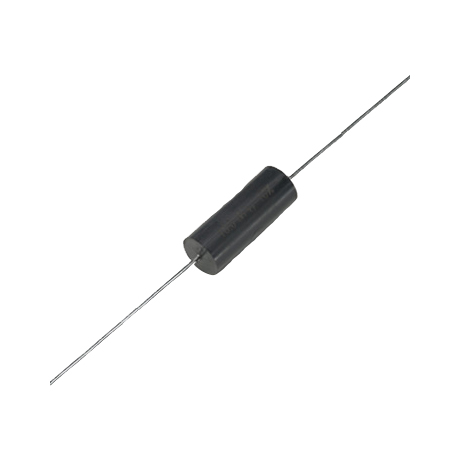

680 nH Unshielded Molded Inductor 1.7 A 80mOhm Max Axial
Technical Specifications
Parameters and characteristics for this part
| Specification | 21M680K |
|---|---|
| Current Rating | 1.7 A |
| DC Resistance (DCR) (Max) | 80 mOhm |
| Frequency - Self Resonant | 240 MHz |
| Inductance | 680 nH |
| Inductance Frequency - Test | 25 MHz |
| Material - Core | Phenolic |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Axial |
| Package Name | Axial |
| Q | 65 |
| Shielding | Unshielded |
| Size / Dimension Diameter | 0.22 in |
| Size / Dimension Length | 0.56 in |
| Tolerance | 10 % |
| Type | Molded |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
