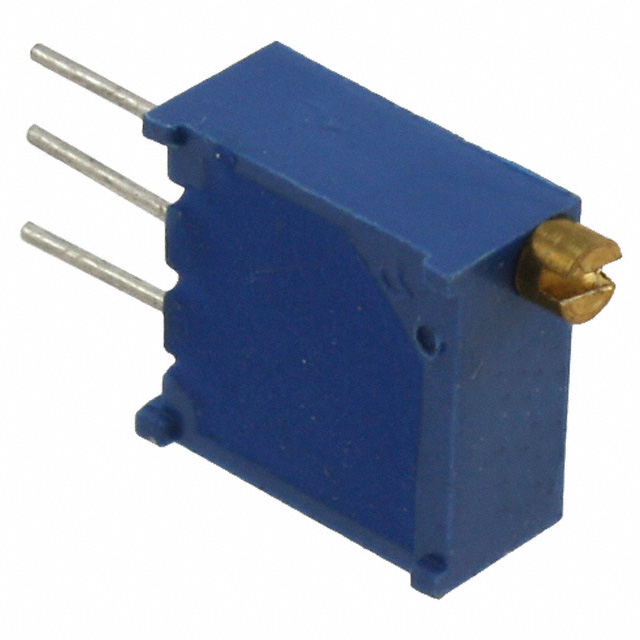

1623849-7

Obsolete

TE Connectivity Passive Product

TRIMMER 1K OHM 0.5W PC PIN TOP

Search across all available documentation for this part.

Obsolete

TE Connectivity Passive Product

TRIMMER 1K OHM 0.5W PC PIN TOP

Technical Specifications

Parameters and characteristics commom to parts in this series

TRIMMER 1K OHM 0.5W PC PIN TOP

Part	Power (Watts)	Power (Watts)	Adjustment Type	Resistance	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Temperature Coefficient	Resistive Material	Tolerance	Termination Style	Mounting Type	Number of Turns
TE Connectivity Passive Product 1623849-7	0.5 W	0.5 W	Top Adjustment	1000 Ohms	4.7 mm	9.5 mm	0.374 in	0.185 in	100 ppm/°C	Cermet	10 %	PC Pins	Through Hole	25
TE Connectivity Passive Product 1-1623849-5	0.5 W	0.5 W	Top Adjustment		4.7 mm	9.5 mm	0.374 in	0.185 in	100 ppm/°C	Cermet	10 %	PC Pins	Through Hole	25

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

1 kOhms 0.5W, 1/2W PC Pins Through Hole Trimmer Potentiometer Cermet 25.0 Turn Top Adjustment
