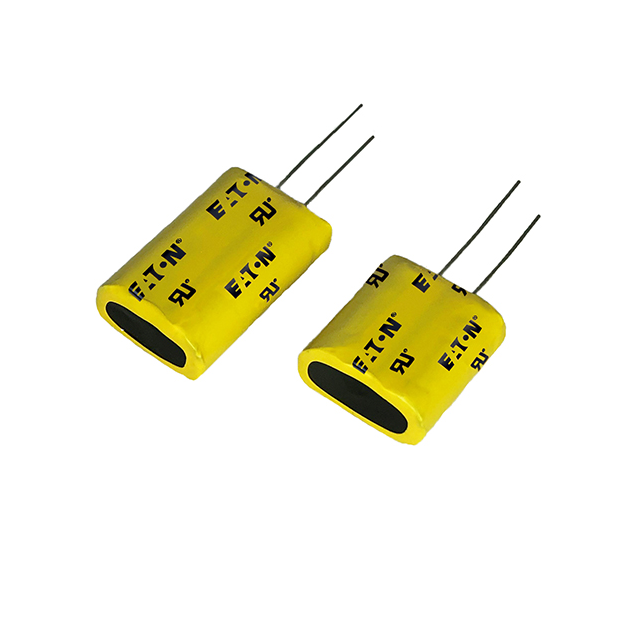

PTV-6R0H305-R
ActiveEaton - Electronics Division
CAP 3F -10% +20% 6V T/H
PTV-6R0H305-R
ActiveEaton - Electronics Division
CAP 3F -10% +20% 6V T/H
Description
General part information
PTV-6R0H305-R
3 F (EDLC) Supercapacitor 6 V Radial 70mOhm 1000 Hrs @ 65°C
Technical Specifications
Parameters and characteristics for this part
| Specification | PTV-6R0H305-R |
|---|---|
| Capacitance | 3 F |
| ESR (Equivalent Series Resistance) | 70 mOhm |
| Height - Seated (Max) | 0.925 in |
| Lead Spacing | 0.209 in |
| Lifetime | 1000 Hrs |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 65 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Radial |
| Size / Dimension Length | 0.839 in |
| Size / Dimension Width | 0.433 in |
| Termination | PC Pins |
| Tolerance (Negative) | 10 % |
| Tolerance (Positive) | 20 % |
| Voltage - Rated | 6 VDC |
