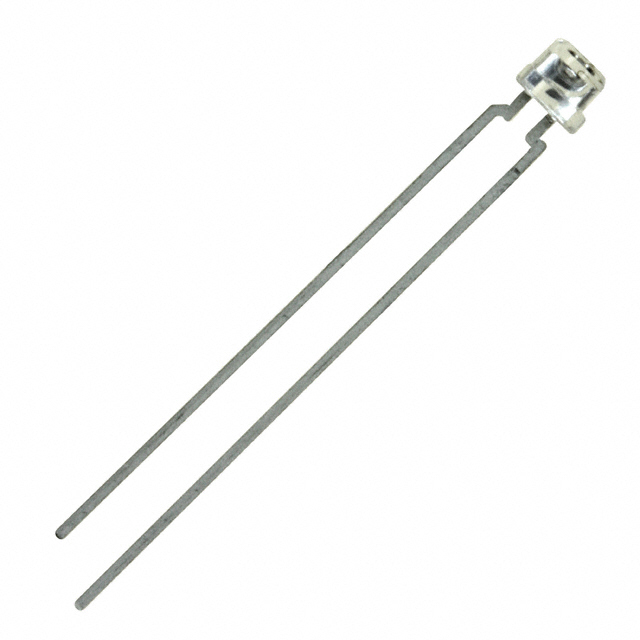

SFH 309 P
Obsoleteams-OSRAM USA INC.
PHOTOTRANSISTOR NPN 860NM 3MM
SFH 309 P
Obsoleteams-OSRAM USA INC.
PHOTOTRANSISTOR NPN 860NM 3MM
Description
General part information
SFH 309 P
Phototransistors 860nm Top View Radial, T-1 Lens
Technical Specifications
Parameters and characteristics for this part
| Specification | SFH 309 P |
|---|---|
| Current - Collector (Ic) (Max) | 0.015 A |
| Current - Dark (Id) (Max) | 200 nA |
| Mounting Type | Through Hole |
| Orientation | Top View |
| Package / Case | Radial, T-1 Lens |
| Power - Max | 165 mW |
| Viewing Angle | 150 ° |
| Voltage - Collector Emitter Breakdown (Max) | 35 V |
| Wavelength | 860 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
