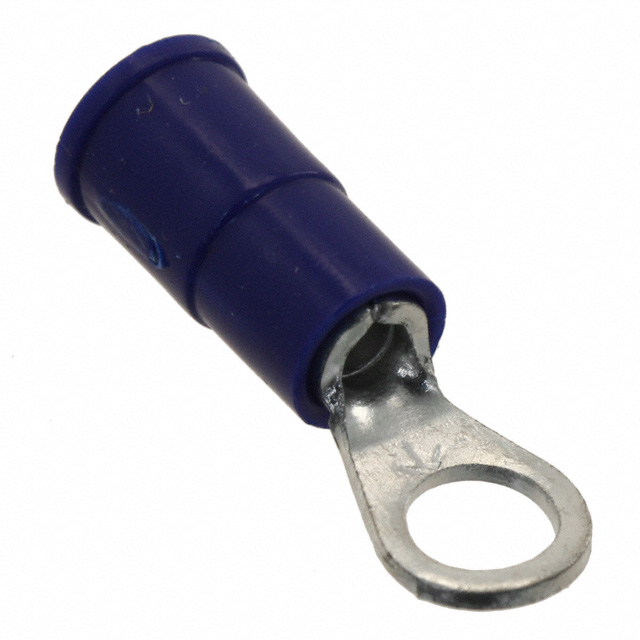

MVU14-8R/SX-BOTTLE

Active

CONN RING CIRC 14-16AWG #8 100PC

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsMVU14-xR Selection Guide Datasheet

MVU14-8R/SX-BOTTLE

Active

CONN RING CIRC 14-16AWG #8 100PC

Deep-Dive with AI

DocumentsMVU14-xR Selection Guide Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	MVU14-8R/SX-BOTTLE	MVU14 Series

Color	Blue	Blue
Contact Finish	Tin	Tin
Contact Material	ETP, Copper	ETP, Copper, Brass
Features	-	Butted Seam
Gender	-	Female, Male
Insulation	Insulated	Insulated, Non-Mating End Insulated, Fully Insulated
Insulation Diameter	-	3.68 - 4.57 mm
Insulation Diameter	-	0.18 in
Insulation Diameter	-	0.145 "
Length - Overall	-	21.08 - 23.62 mm
Length - Overall	-	0.9 in
Length - Overall [x]	20.32 mm	18.54 - 22.35 mm
Length - Overall [x]	0.8 in	0.73 - 0.93 in
Length - Ring Center to Termination	-	0.25 in
Length - Ring Center to Termination	-	6.35 mm
Length - Ring Center to Termination	-	0.29 in
Length - Ring Center to Termination	-	7.37 mm
Length - Termination	-	0.45 in
Length - Termination	-	11.43 mm
Material - Insulation	Vinyl	Vinyl
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Wire Entries	-	2
Stud/Tab Size	8 Stud	8 Stud
Stud/Tab Size	-	0.25 - 10 Stud
Tab Thickness	-	0.02 - 0.032 in
Tab Thickness	-	0.51 - 0.81 mm
Tab Width	-	2.79 - 6.35 mm
Tab Width	-	0.11 - 0.25 in
Terminal Type	Circular	Circular, Stacked, Standard, Snap, Spring, Pin (Plug), Male, Butt Splice, Inline, Individual Openings
Termination	Crimp	Crimp
Thickness	0.03 in	0.03 in
Thickness	0.76 mm	0.76 mm
Width - Outer Edges	-	7.87 - 8.64 mm
Width - Outer Edges	-	0.34 in
Width - Outer Edges [y]	0.25 "	0.25 - 0.47 in
Width - Outer Edges [y]	6.35 mm	6.35 - 11.94 mm

MVU14 Series

CONN RING CIRC 14-16AWG 100PC

Part	Width - Outer Edges [y]	Width - Outer Edges [y]	Contact Finish	Material - Insulation	Contact Material	Terminal Type	Color	Thickness	Thickness	Stud/Tab Size	Insulation	Termination	Mounting Type	Length - Overall [x]	Length - Overall [x]	Features	Tab Width	Tab Width	Gender	Tab Thickness	Tab Thickness	Insulation Diameter	Insulation Diameter	Insulation Diameter [diameter]	Length - Termination [x]	Length - Termination [x]	Length - Ring Center to Termination [x]	Length - Ring Center to Termination [x]	Stud/Tab Size	Length - Overall	Width - Outer Edges
3M MVU14-14R/SX-BOTTLE	0.47 in	11.94 mm	Tin	Vinyl	Copper, ETP	Circular	Blue	0.03 in	0.76 mm	0.25 Stud	Insulated	Crimp	Free Hanging (In-Line)
3M MVU14-250DMFX-A-BOTTLE			Tin		Brass	Stacked	Blue				Non-Mating End Insulated	Crimp	Free Hanging (In-Line)	22.1 mm	0.87 in	Butted Seam	6.35 mm	0.25 in	Female, Male	0.032 in	0.81 mm
3M MVU14-110DFK-A						Standard	Blue				Insulated	Crimp	Free Hanging (In-Line)	18.54 mm	0.73 in	Butted Seam	2.79 mm	0.11 "	Female	0.02 "	0.51 mm	4.57 mm	0.18 in
3M MVU14-250DFK			Tin		Brass	Standard	Blue				Non-Mating End Insulated	Crimp	Free Hanging (In-Line)	22.1 mm	0.87 in	Butted Seam	6.35 mm	0.25 in	Female	0.032 in	0.81 mm	3.68 mm		0.145 "
3M MVU14-10FLK	0.32 in	8.13 mm	Tin	Vinyl	Copper, ETP	Snap, Spring	Blue			10 Stud	Insulated	Crimp	Free Hanging (In-Line)	22.35 mm	0.88 in	Butted Seam									0.45 in	11.43 mm	0.25 in	6.35 mm
3M MVU14-250DFX			Tin		Brass	Standard	Blue				Non-Mating End Insulated	Crimp	Free Hanging (In-Line)	22.1 mm	0.87 in	Butted Seam	6.35 mm	0.25 in	Female	0.032 in	0.81 mm	3.68 mm		0.145 "
3M MVU14-8FBX-BOTTLE			Tin	Vinyl	Copper, ETP	Standard	Blue				Insulated	Crimp	Free Hanging (In-Line)	21.59 mm	0.85 "	Butted Seam									0.45 in	11.43 mm	0.25 in	6.35 mm	8 Stud
3M MVU14-6FBK			Tin	Vinyl	Copper, ETP	Standard	Blue			6 Stud	Insulated	Crimp	Free Hanging (In-Line)	21.59 mm	0.85 "	Butted Seam									0.45 in	11.43 mm	0.25 in	6.35 mm
3M MVU14-180DMK-A			Tin	Vinyl	Brass	Male, Pin (Plug)	Blue				Non-Mating End Insulated	Crimp			0.83 in	Butted Seam														21.08 mm
3M MVU14-8R/LK	0.31 in		Tin	Vinyl	Copper, ETP	Circular	Blue	0.03 in	0.76 mm		Insulated	Crimp	Free Hanging (In-Line)		0.93 in														8 Stud	23.62 mm	7.87 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	5	$ 38.85

Description

General part information

MVU14 Series

Ring Terminal Connector 8 Stud Circular 14-16 AWG Crimp

Documents

Technical documentation and resources

MVU14-xR Selection Guide

Datasheet
