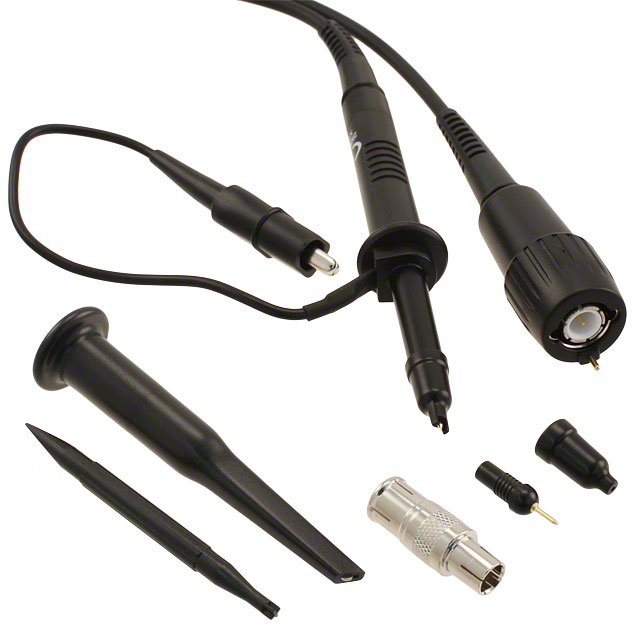

P250R

Active

TPI (Test Products Int)

OSCOPE PROBE X100 250MHZ 100M

Search across all available documentation for this part.

Active

TPI (Test Products Int)

OSCOPE PROBE X100 250MHZ 100M

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	P250R	P250 Series

Attenuation Value [custom]	100:1	10:1, 100:1
Bandwidth	250 MHz	250 MHz
Cable Length	47.244 in	47.244 - 118 in
Cable Length	1.2 m	1.2 - 2997.2 m
Capacitance - Input	6.5 pF	6.5 - 14 pF
Resistance - Input	100 M	10 - 100 M
Type	Passive with Readout	Passive, Passive with Readout
Voltage - Max	-	300 V
Voltage - Max [Max]	1500 V	1500 V

OSCOPE PROBE X10 250MHZ 10M

Part	Resistance - Input	Bandwidth	Attenuation Value [custom]	Voltage - Max	Capacitance - Input	Cable Length	Cable Length	Type	Voltage - Max [Max]
TPI (Test Products Int) P250B	10 M	250 MHz	10:1	300 V	14 pF	47.244 in	1.2 m	Passive
TPI (Test Products Int) P250BR	10 M	250 MHz	10:1	300 V	14 pF	47.244 in	1.2 m	Passive with Readout
TPI (Test Products Int) P250BR3	10 M	250 MHz	10:1	300 V	14 pF	118 in	2997.2 mm	Passive with Readout
TPI (Test Products Int) P250R	100 M	250 MHz	100:1		6.5 pF	47.244 in	1.2 m	Passive with Readout	1500 V
TPI (Test Products Int) P250BR2	10 M	250 MHz	10:1	300 V	14 pF	78.74 in	2 m	Passive with Readout

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

100:1 Passive with Readout 250MHz 47.244" (1200.00mm) Oscilloscope Probe Test Lead 100M Input Resistance CAT II 1500V
