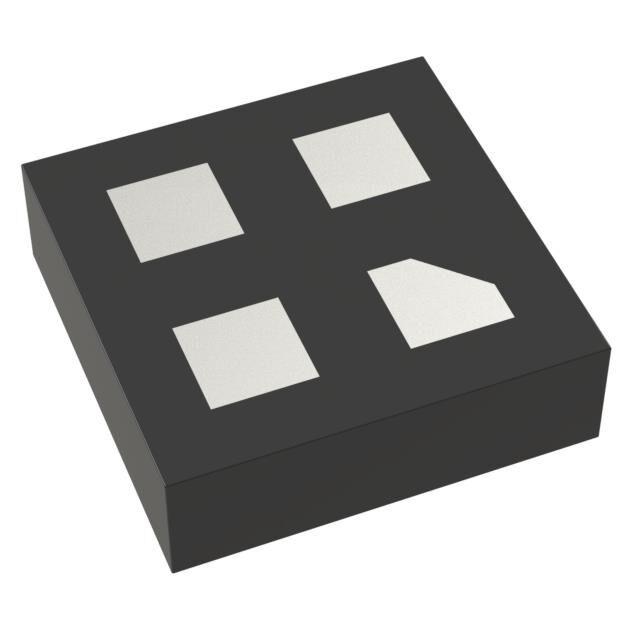

CT8150PC-IL4

Active

Allegro MicroSystems

OMNIPOLAR MAGNETIC ANALOG SENSOR

Search across all available documentation for this part.

Active

Allegro MicroSystems

OMNIPOLAR MAGNETIC ANALOG SENSOR

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Digital Switch Omnipolar Switch Analog Voltage Magnetoresistive 4-LGA (1.45x1.45)

Technical documentation and resources

Part	Function	Mounting Type	Supplier Device Package	Polarization	Technology	Voltage - Supply [Max]	Voltage - Supply [Min]	Sensing Range [Max]	Sensing Range [Min]	Current - Supply (Max) [Max]	Output Type	Package / Case	Current - Output (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Test Condition [Min]	Test Condition [Max]	Supplier Device Package [y]	Supplier Device Package [x]
Allegro MicroSystems CT8150PC-IS3	Omnipolar Switch	Surface Mount	SOT-23-3	North Pole, South Pole	Magnetoresistive	5.5 V	1.7 V	8 mT	-8 mT	1.3 µA	Analog Voltage	SC-59, SOT-23-3, TO-236-3	20 mA	85 °C	-40 °C	-40 °C	125 °C
Allegro MicroSystems CT8150PC-IL4	Omnipolar Switch	Surface Mount	4-LGA	North Pole, South Pole	Magnetoresistive	5.5 V	1.7 V	8 mT	-8 mT	5 µA	Analog Voltage	4-XFLGA	20 mA	85 °C	-40 °C	-40 °C	125 °C	1.45	1.45
Allegro MicroSystems CT8150PC-HS3	Omnipolar Switch	Surface Mount	SOT-23-3	North Pole, South Pole	Magnetoresistive	5.5 V	1.7 V	8 mT	-8 mT	5 µA	Analog Voltage	SC-59, SOT-23-3, TO-236-3	20 mA	125 °C	-40 °C	-40 °C	125 °C
