M3473-SS
ActiveRAF Electronic Hardware
SCREW, PLAIN, M4, 9MM, STAINLESS STEEL, THUMB
Deep-Dive with AI
Search across all available documentation for this part.
M3473-SS
ActiveRAF Electronic Hardware
SCREW, PLAIN, M4, 9MM, STAINLESS STEEL, THUMB
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | M3473-SS |
|---|---|
| Head Diameter [diameter] | 0.394 in |
| Head Diameter [diameter] | 10.01 mm |
| Head Height | 5 mm |
| Head Height | 0.197 in |
| Length - Below Head [x] | 9 mm |
| Length - Below Head [x] | 0.354 in |
| Length - Overall [x] | 0.551 " |
| Length - Overall [x] | 14 mm |
| Material | Stainless Steel |
| Screw Head Type | Knob |
| Thread Size | M4x0.7 |
| Type | Thumb Screw |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
M3473-SS

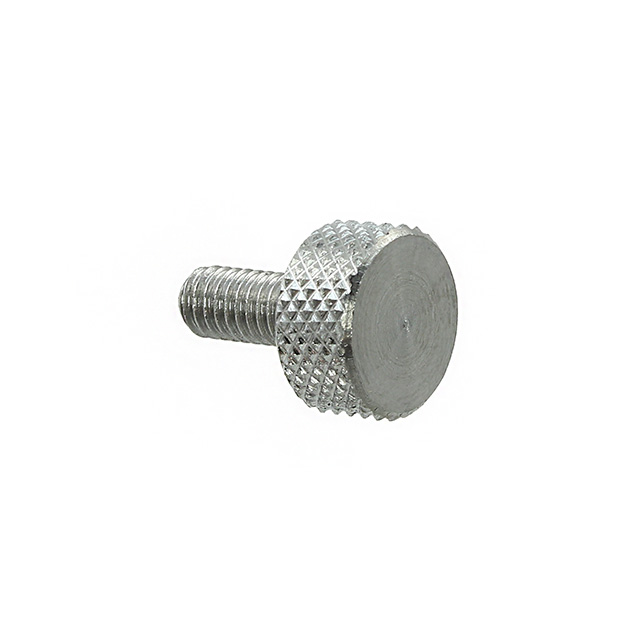

The M3473-SS is a M4 x 9mm Plain Thumb Screw made of stainless steel.
