0801655

Active

Phoenix Contact

SNAP ON FRAME

Search across all available documentation for this part.

Active

Phoenix Contact

SNAP ON FRAME

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	0801655	CES-B10 Series

Accessory Type	Snap-Up Frame	Snap-Up Frame, Locking Latch, Sealing Frame, Gasket, Flat
Features [x]	4.25 in	2.3 - 4.25 in
Features [x]	108 mm	58.5 - 108 mm
Features [y]	2.52 in	2.26 - 3.91 in
Features [y]	64 mm	57.5 - 99.2 mm
For Use With/Related Products	PLUSCON CES Sealing Frames	PLUSCON CES Sealing Frames, PLUSCON CES Cable Sleeves
Material	Polyamide (PA), Nylon	Polyamide (PA), Nylon, Rubber

SNAP ON FRAME

Part	For Use With/Related Products	Material	Accessory Type	Features [x]	Features [y]	Features [y]	Features [x]
Phoenix Contact 0801655	PLUSCON CES Sealing Frames	Polyamide (PA), Nylon	Snap-Up Frame	4.25 in	2.52 in	64 mm	108 mm
Phoenix Contact 0801663	PLUSCON CES Cable Sleeves	Polyamide (PA), Nylon	Locking Latch, Sealing Frame	2.3 in	3.91 in	99.2 mm	58.5 mm
Phoenix Contact 0801725	PLUSCON CES Sealing Frames	Rubber	Gasket, Flat	3.91 in	2.26 in	57.5 mm	99.2 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

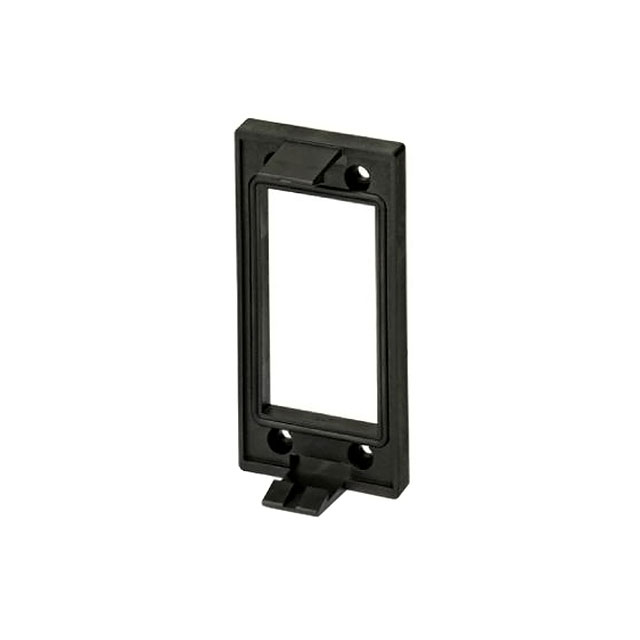

Snap-Up Frame For PLUSCON CES Sealing Frames

Technical documentation and resources

No documents available
