SC7536

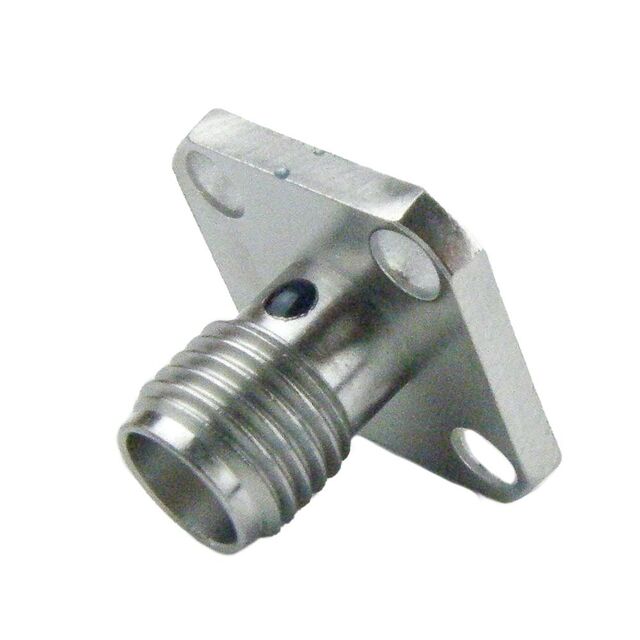

SMA Connector Jack, Female Socket 50 Ohms Panel Mount Solder Tab
Technical Specifications
Parameters and characteristics for this part
| Specification | SC7536 |
|---|---|
| Body Material | Stainless Steel |
| Center Contact Material | Beryllium Copper |
| Center Contact Plating | Gold |
| Connector Style | SMA |
| Connector Type | Jack, Female Socket |
| Contact Termination | Solder Tab |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Fastening Type | Threaded |
| Frequency - Max | 18 GHz |
| Housing Color | Silver |
| Impedance | 50 Ohm |
| Mounting Feature | Flange |
| Mounting Type | Panel Mount |
| Number of Ports | 1 |
| Operating Temperature (Max) | 155 °C |
| Operating Temperature (Min) | -55 °C |
| Shield Termination | Solder |
