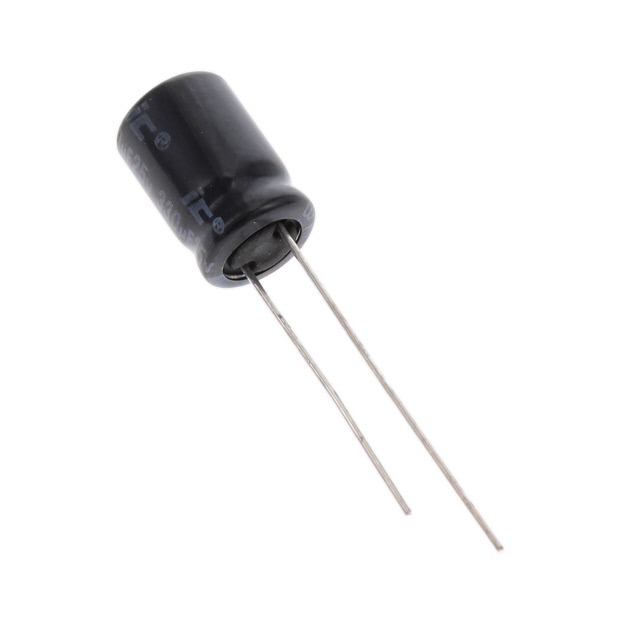

Specification	337CKS025M

Applications	Bypass, Decoupling
Capacitance	330 µF
ESR (Equivalent Series Resistance)	703 mOhm
Height - Seated (Max)	0.512 in
Lead Spacing	0.138 in
Lifetime	2000 Hrs
Mounting Type	Through Hole
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-40 °C
Package / Case	Can, Radial
Polarization	Polar
Ripple Current	750.75 mA, 455 mA
Size / Dimension Diameter	0.315 in
Tolerance	20 %
Voltage - Rated	25 VAC
