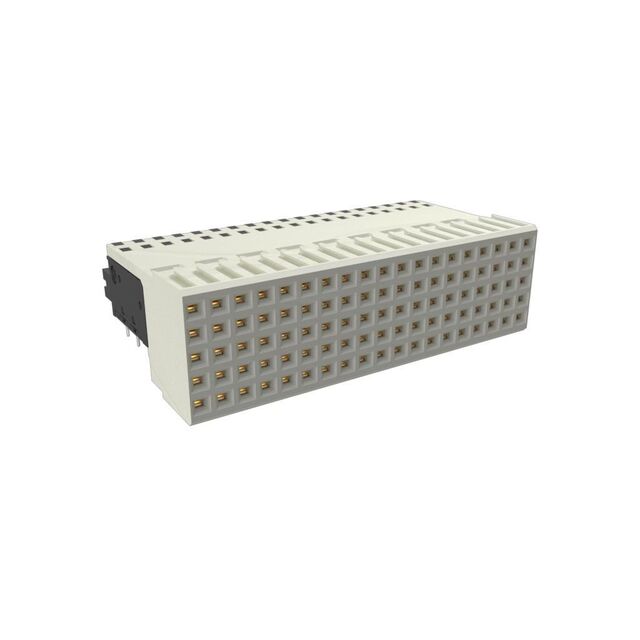

10155110-102LF

Obsolete

Amphenol ICC (FCI)

MILLIPACS HIGH SPEED RA RECEPT

Search across all available documentation for this part.

Obsolete

Amphenol ICC (FCI)

MILLIPACS HIGH SPEED RA RECEPT

Technical Specifications

Parameters and characteristics for this part

Specification	10155110-102LF

Connector Style	B 19
Connector Type	Receptacle, Female Sockets
Connector Usage	Backplane
Contact Finish	GXT™, Gold or Gold
Current Rating (Amps)	1.5 A
Mounting Type	Through Hole, Right Angle, Board Edge
Number of Positions	95
Number of Positions Loaded	All
Number of Rows	5
Operating Temperature [Max]	347 °F
Operating Temperature [Min]	-55 °C
Pitch [x]	0.079 in
Pitch [x]	2 mm
Termination	Press-Fit
Voltage Rating	750 VDC

Part	Connector Type	Voltage Rating	Mounting Type	Termination	Number of Rows	Operating Temperature [Min]	Operating Temperature [Max]	Connector Style	Contact Finish	Number of Positions	Current Rating (Amps)	Pitch [x]	Pitch [x]	Connector Usage	Number of Positions Loaded
Amphenol ICC (FCI) 10155110-102LF	Receptacle Female Sockets	750 VDC	Board Edge Right Angle Through Hole	Press-Fit	5	-55 °C	347 °F	B 19	Gold or Gold GXT™	95	1.5 A	0.079 in	2 mm	Backplane	All

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

95 Position Receptacle, Female Sockets Connector 0.079" (2.00mm) Board Edge, Through Hole, Right Angle
