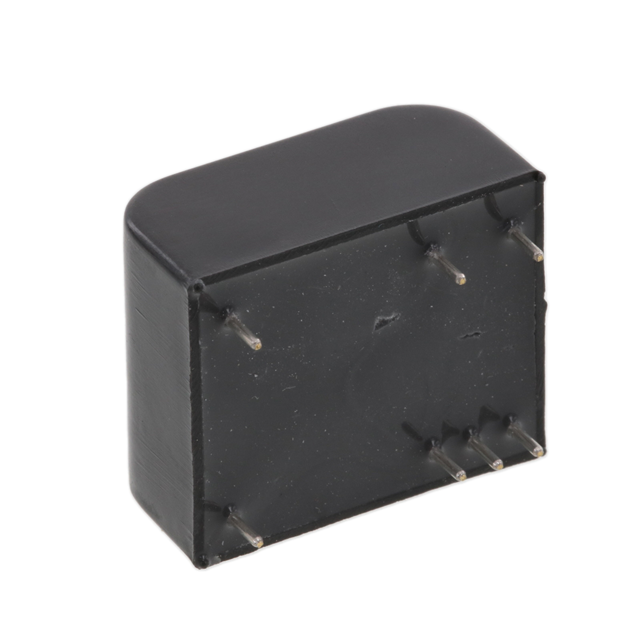

BPSX 1-08-00

Active

Cita Technologies, LLC.

AC/DC CONVERTER 8V 1W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

BPSX 1-08-00

Active

Cita Technologies, LLC.

AC/DC CONVERTER 8V 1W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 8.59
		5	$ 8.09
		10	$ 7.89
		25	$ 7.62
		50	$ 7.43
		100	$ 7.24
		250	$ 7.00
		500	$ 6.82

Description

General part information

BPSX 1 Series

Enclosed AC DC Converters 1 Output 8V 85 ~ 265 VAC Input

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	BPSX 1-08-00	BPSX 1 Series

Applications	ITE (Commercial)	ITE (Commercial)
Approval Agency	CB, cURus	CB, cURus
Current - Output (Max)	-	23 - 125 mA
Efficiency	70 %	70 %
Features	Universal Input	Universal Input
Mounting Type	Through Hole	Through Hole
Number of Outputs	1	1 - 2
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Package / Case	7-DIP Module	7-DIP Module
Power (Watts)	-	6.9 - 837 mW
Size / Dimension [x]	27.9 mm	27.9 mm
Size / Dimension [x]	1.1 "	1.1 "
Size / Dimension [y]	0.92 "	0.92 "
Size / Dimension [y]	23.2 mm	23.2 mm
Size / Dimension [z]	0.55 in	0.55 in
Size / Dimension [z]	14 mm	14 mm
Type	Enclosed	Enclosed
Voltage - Input [Max]	265 VAC	265 VAC
Voltage - Input [Min]	85 VAC	85 VAC
Voltage - Output 1	8 V	8 - 14 V

BPSX 1 Series

AC/DC CONVERTER 8V 3.3V 837MW

Part	Package / Case	Voltage - Input [Min]	Voltage - Input [Max]	Efficiency	Features	Operating Temperature [Max]	Operating Temperature [Min]	Type	Voltage - Output 1	Power (Watts)	Number of Outputs	Current - Output (Max)	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Mounting Type	Applications	Approval Agency
Cita Technologies, LLC. BPSX 1-08-33	7-DIP Module	85 VAC	265 VAC	70 %	Universal Input	85 °C	-40 °C	Enclosed	8 V	837 mW	2	53 mA, 125 mA	0.92 "	27.9 mm	0.55 in	14 mm	1.1 "	23.2 mm	Through Hole	ITE (Commercial)	CB, cURus
Cita Technologies, LLC. BPSX 1-14-50	7-DIP Module	85 VAC	265 VAC	70 %	Universal Input	85 °C	-40 °C	Enclosed	14 V	747 mW	2	28 mA, 71 mA	0.92 "	27.9 mm	0.55 in	14 mm	1.1 "	23.2 mm	Through Hole	ITE (Commercial)	CB, cURus
Cita Technologies, LLC. BPSX 1-08-50	7-DIP Module	85 VAC	265 VAC	70 %	Universal Input	85 °C	-40 °C	Enclosed	8 V	6.9 W	2	83 mA, 125 mA	0.92 "	27.9 mm	0.55 in	14 mm	1.1 "	23.2 mm	Through Hole	ITE (Commercial)	CB, cURus
Cita Technologies, LLC. BPSX 1-08-00	7-DIP Module	85 VAC	265 VAC	70 %	Universal Input	85 °C	-40 °C	Enclosed	8 V		1		0.92 "	27.9 mm	0.55 in	14 mm	1.1 "	23.2 mm	Through Hole	ITE (Commercial)	CB, cURus
Cita Technologies, LLC. BPSX 1-14-33	7-DIP Module	85 VAC	265 VAC	70 %	Universal Input	85 °C	-40 °C	Enclosed	14 V	556 mW	2	23 mA, 71 mA	0.92 "	27.9 mm	0.55 in	14 mm	1.1 "	23.2 mm	Through Hole	ITE (Commercial)	CB, cURus
Cita Technologies, LLC. BPSX 1-14-00	7-DIP Module	85 VAC	265 VAC	70 %	Universal Input	85 °C	-40 °C	Enclosed	14 V		1		0.92 "	27.9 mm	0.55 in	14 mm	1.1 "	23.2 mm	Through Hole	ITE (Commercial)	CB, cURus
