TSL1112RA-472JR21-PF
ObsoleteTDK Corporation
FIXED IND 4.7MH 210MA 7.6 OHM TH
TSL1112RA-472JR21-PF
ObsoleteTDK Corporation
FIXED IND 4.7MH 210MA 7.6 OHM TH
Description
General part information
TSL1112RA-472JR21-PF

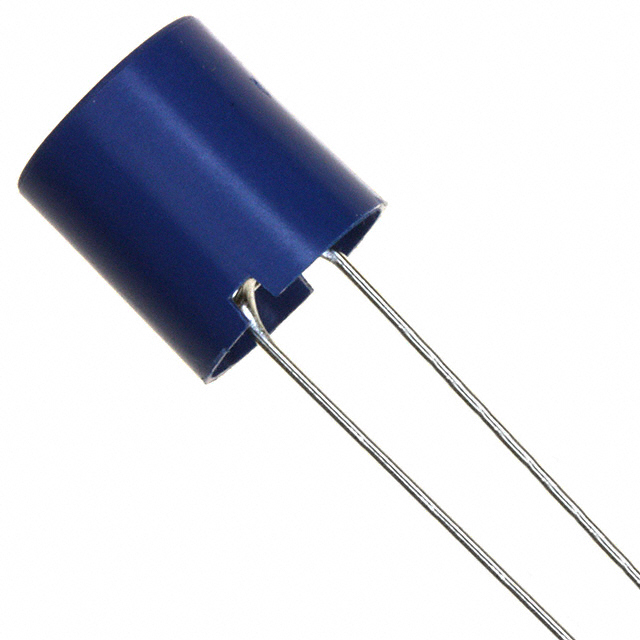

4.7 mH Unshielded Inductor 210 mA 7.6Ohm Max Radial, Vertical Cylinder
Technical Specifications
Parameters and characteristics for this part
| Specification | TSL1112RA-472JR21-PF |
|---|---|
| Current - Saturation (Isat) | 0.24 mA |
| Current Rating | 0.21 A |
| DC Resistance (DCR) (Max) | 7.6 Ohm |
| Frequency - Self Resonant | 540 kHz |
| Height - Seated (Max) | 0.492 in |
| Inductance | 4.7 mH |
| Inductance Frequency - Test | 1 kHz |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -20 °C |
| Package / Case | Vertical Cylinder, Radial |
| Q | 30 |
| Shielding | Unshielded |
| Size / Dimension Diameter | 0.441 in |
| Tolerance | 5 % |
