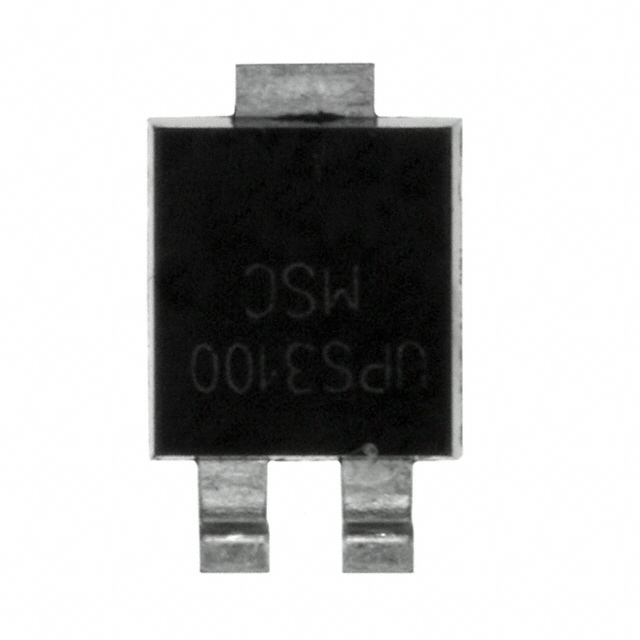

UPS3100E3/TR13
ActiveMicrochip Technology
DIODE SCHOTTKY 100V 3A POWERMITE
Deep-Dive with AI
Search across all available documentation for this part.
UPS3100E3/TR13
ActiveMicrochip Technology
DIODE SCHOTTKY 100V 3A POWERMITE
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | UPS3100E3/TR13 |
|---|---|
| Capacitance @ Vr, F | 85 pF |
| Current - Average Rectified (Io) | 3 A |
| Current - Reverse Leakage @ Vr | 200 µA |
| Mounting Type | Surface Mount |
| Operating Temperature - Junction [Max] | 125 °C |
| Operating Temperature - Junction [Min] | -55 °C |
| Package / Case | Powermite®3 |
| Speed | 200 mA, 500 ns |
| Supplier Device Package | Powermite 3 |
| Technology | Schottky |
| Voltage - DC Reverse (Vr) (Max) [Max] | 100 V |
| Voltage - Forward (Vf) (Max) @ If | 760 mV |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.41 | |
| 100 | $ 1.30 | |||
| Digi-Reel® | 1 | $ 1.41 | ||
| 100 | $ 1.30 | |||
| Tape & Reel (TR) | 5000 | $ 1.30 | ||
UPS3100 Series
DIODE SCHOTTKY 100V 3A POWERMITE
| Part | Package / Case | Speed | Operating Temperature - Junction [Min] | Operating Temperature - Junction [Max] | Current - Reverse Leakage @ Vr | Voltage - Forward (Vf) (Max) @ If | Capacitance @ Vr, F | Voltage - DC Reverse (Vr) (Max) [Max] | Current - Average Rectified (Io) | Mounting Type | Supplier Device Package | Technology |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
Microchip Technology UPS3100E3/TR13 | Powermite®3 | 200 mA, 500 ns | -55 °C | 125 °C | 200 µA | 760 mV | 85 pF | 100 V | 3 A | Surface Mount | Powermite 3 | Schottky |
Description
General part information
UPS3100 Series
Diode 100 V 3A Surface Mount Powermite 3
Documents
Technical documentation and resources
No documents available
