1-796435-2

Active

TE Connectivity AMP Connectors

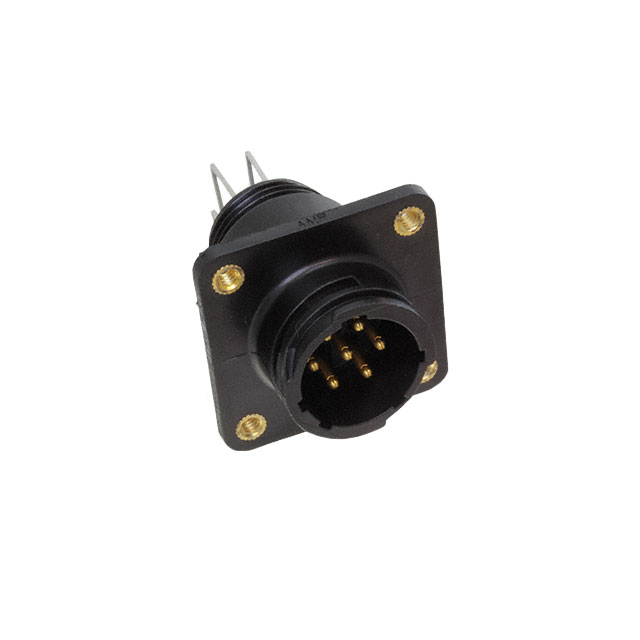

CONN RCPT MALE 7POS GOLD SOLDER

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN RCPT MALE 7POS GOLD SOLDER

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1-796435-2	796435 Series

Connector Type	Receptacle, Male Pins	Receptacle, Male Pins
Contact Finish - Mating	Gold, PdNi +Gold	Gold, PdNi +Gold
Contact Finish Thickness - Mating	30 Áin	3 - 30 Áin
Contact Finish Thickness - Mating	0.76 Ám	0.076 - 0.76 Ám
Contact Material	Brass	Brass
Material Flammability Rating	UL94 V-0	UL94 V-0, UL94 V-1
Mounting Feature	Flange	Flange
Mounting Type	Through Hole, Right Angle, Panel Mount	Through Hole, Right Angle, Panel Mount
Number of Positions	7	7
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-55 °C	-55 °C
Orientation	A	A
Primary Material	Plastic	Plastic
Shell Size - Insert	13-7	13-7
Termination	Solder	Solder
Voltage Rating	250 VAC	250 VAC

CONN RCPT MALE 7POS GOLD SOLDER

Part	Contact Finish - Mating	Connector Type	Termination	Orientation	Material Flammability Rating	Number of Positions	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Mounting Feature	Operating Temperature [Max]	Operating Temperature [Min]	Voltage Rating	Shell Size - Insert	Primary Material	Mounting Type	Contact Material
TE Connectivity AMP Connectors 796435-1	Gold	Male Pins, Receptacle	Solder	A	UL94 V-0	7	30 Áin	0.76 Ám	Flange	105 ░C	-55 °C	250 VAC	13-7	Plastic	Panel Mount, Right Angle, Through Hole	Brass
TE Connectivity AMP Connectors 1-796435-2	Gold, PdNi +Gold	Male Pins, Receptacle	Solder	A	UL94 V-0	7	30 Áin	0.76 Ám	Flange	105 ░C	-55 °C	250 VAC	13-7	Plastic	Panel Mount, Right Angle, Through Hole	Brass
TE Connectivity AMP Connectors 796435-2	Gold	Male Pins, Receptacle	Solder	A	UL94 V-1	7	3 µin	0.076 µm	Flange	105 ░C	-55 °C	250 VAC	13-7	Plastic	Panel Mount, Right Angle, Through Hole

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

7 Position Circular Connector Receptacle, Male Pins Solder
