Description
General part information

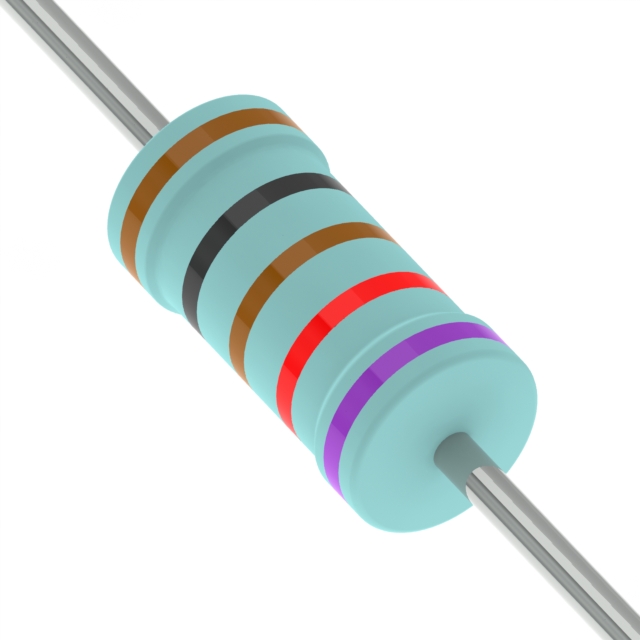

MFP200BBD73-10K1
10.1 kOhms ±0.1% 2W Through Hole Resistor Axial Metal Film
Technical Specifications
Parameters and characteristics for this part
| Specification | MFP200BBD73-10K1 |
|---|---|
| Composition | Metal Film |
| Number of Terminations | 2 |
| Operating Temperature (Max) | 155 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Axial |
| Package Name | Axial |
| Power (Watts) | 2 w |
| Resistance | 10.1 kOhm |
| Size / Dimension Diameter | 0.197 in |
| Size / Dimension Length | 0.61 in |
| Temperature Coefficient | 25 ppm/°C |
| Tolerance | 0.1 % |
