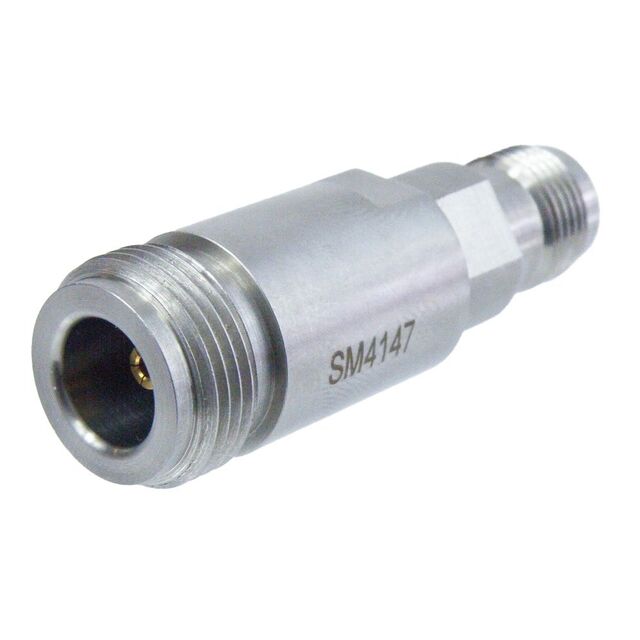

SM4147
Adapter Coaxial Connector N Jack, Female Socket To TNC Jack, Female Socket 50 Ohms
Technical Specifications
Parameters and characteristics for this part
| Specification | SM4147 |
|---|---|
| Adapter Series | N to TNC |
| Adapter Type | Jack to Jack |
| Body Finish | Passivated |
| Body Material | Stainless Steel |
| Center Contact Material | Beryllium Copper |
| Center Contact Plating | Gold |
| Center Gender | Female |
| Conversion Type | Between Series |
| Convert From (Adapter End) | N Jack, Female Socket |
| Convert To (Adapter End) | TNC Jack, Female Socket |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Fastening Type | Threaded |
| Frequency - Max | 18 GHz |
| Impedance | 50 Ohm |
| Mating Cycles | 500 cycles |
| Mounting Type | Free Hanging (In-Line) |
| Operating Temperature (Max) | 100 °C |
| Operating Temperature (Min) | -55 °C |
| Style | Straight |
