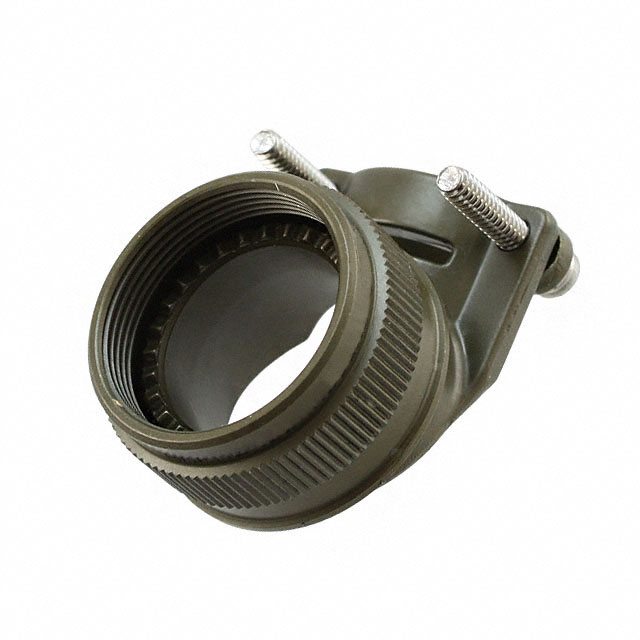

M85049/39S17W

Active

Amphenol Interconnect India

CONN CABLE CLAMP SZ17 E OLIVE

Search across all available documentation for this part.

Active

Amphenol Interconnect India

CONN CABLE CLAMP SZ17 E OLIVE

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Olive Drab Connector Cable Clamp 17, E

Technical documentation and resources

No documents available

Parameters and characteristics commom to parts in this series

Specification	M85049/39S17W	M85049/39 Series

Cable Exit	90 °	90 °
Cable Opening	-	5.94 mm
Cable Opening	-	0.26 - 0.457 in
Cable Opening	-	6.6 - 11.61 mm
Cable Opening [Max] [custom]	15.6 mm	15.6 mm
Cable Opening [Max] [custom]	0.614 in	0.234 - 0.614 in
Cable Opening [Min] [custom]	0.283 in	0.153 - 0.283 in
Cable Opening [Min] [custom]	7.19 mm	3.89 - 7.19 mm
Color	Olive Drab	Olive Drab
Diameter - Outside	-	0.85 - 1.25 in
Diameter - Outside [diameter]	1.406 in	1.406 - 31.75 mm
Diameter - Outside [diameter]	35.71 mm	35.71 mm
Features	Self Locking, Strain Relief	Strain Relief, Self Locking
For Use With/Related Products	MIL-DTL-38999 Series III, IV	MIL-DTL-38999 Series III, IV
Material	Aluminum Alloy	Aluminum Alloy
Plating	Cadmium	Cadmium
Shell Size - Insert	17, E	B, 17, E, D
Shell Size - Insert	-	11 - 15
Shielding	Unshielded	Unshielded
Type	Cable Clamp	Cable Clamp

CONN CABLE CLAMP SZ11 B OLIVE

Part	Diameter - Outside [diameter]	Diameter - Outside [diameter]	Cable Opening [Min] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Max] [custom]	Shielding	Shell Size - Insert	Shell Size - Insert	Color	Material	Plating	Cable Exit	For Use With/Related Products	Features	Type	Cable Opening [Max] [custom]	Diameter - Outside [diameter]	Cable Opening [custom]	Cable Opening [custom]
Amphenol Interconnect India M85049/39-11W	21.59 mm	0.85 in	0.153 in	3.89 mm	5.94 mm	0.234 in	Unshielded	B	11	Olive Drab	Aluminum Alloy	Cadmium	90 °	MIL-DTL-38999 Series III, IV	Strain Relief	Cable Clamp
Amphenol Interconnect India M85049/39S17W	1.406 in		0.283 in	7.19 mm		0.614 in	Unshielded	17, E		Olive Drab	Aluminum Alloy	Cadmium	90 °	MIL-DTL-38999 Series III, IV	Self Locking, Strain Relief	Cable Clamp	15.6 mm	35.71 mm
Amphenol Interconnect India M85049/39-15W	27.94 mm	1.1 "					Unshielded	D	15	Olive Drab	Aluminum Alloy	Cadmium	90 °	MIL-DTL-38999 Series III, IV	Strain Relief	Cable Clamp			0.26 in, 0.457 in	6.6 mm, 11.61 mm
Amphenol Interconnect India M85049/39-17W	31.75 mm	1.25 in	0.283 in	7.19 mm		0.614 in	Unshielded	17, E		Olive Drab	Aluminum Alloy	Cadmium	90 °	MIL-DTL-38999 Series III, IV	Strain Relief	Cable Clamp	15.6 mm
