PMR18EZPJU7L0
ActiveRohm Semiconductor
RES 0.007 OHM 5% 1W 1206
PMR18EZPJU7L0
ActiveRohm Semiconductor
RES 0.007 OHM 5% 1W 1206
Description
General part information
PMR18EZPJU7L0

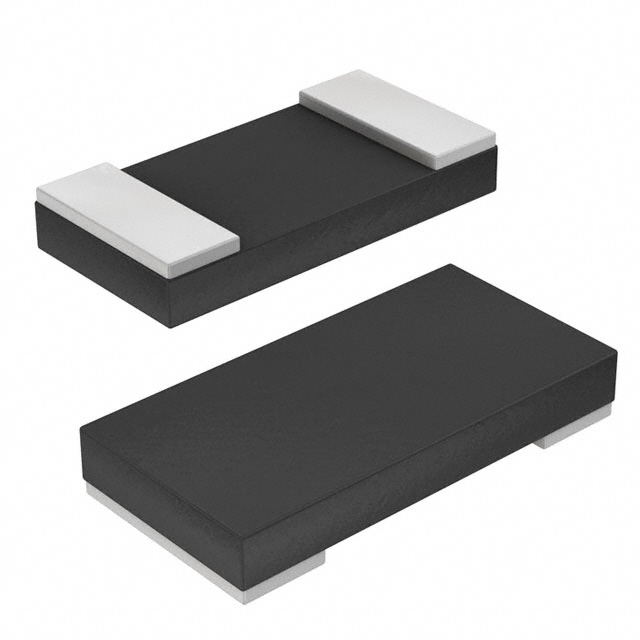

7 mOhms ±5% 1W Chip Resistor 1206 (3216 Metric) Automotive AEC-Q200, Current Sense Metal Element
Technical Specifications
Parameters and characteristics for this part
| Specification | PMR18EZPJU7L0 |
|---|---|
| Composition | Metal Element |
| Features | Current Sense, Automotive AEC-Q200 |
| Height - Seated (Max) | 0.017 in |
| Number of Terminations | 2 |
| Operating Temperature (Max) | 155 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | 1206 (3216 Metric) |
| Package Name | 1206 |
| Power (Watts) | 1 W |
| Ratings | AEC-Q200 |
| Resistance | 7 mOhms |
| Size / Dimension Length | 0.126 in |
| Size / Dimension Width | 0.063 in |
| Temperature Coefficient | 100 ppm/°C |
| Tolerance | 5 % |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
