PQ20/20-3C95
ActiveFerroxcube

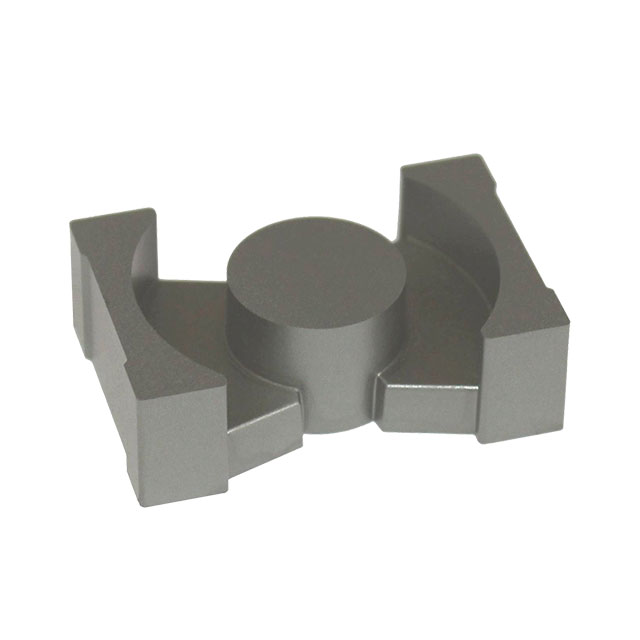

FERRITE CORE PQ 3C95 2PC SET
PQ20/20-3C95
ActiveFerroxcube
FERRITE CORE PQ 3C95 2PC SET
Description
General part information
PQ20/20-3C95
Uncoated 3C95 Ferrite Core PQ Type 0.839" (21.30mm) Length 0.551" (14.00mm) Width Diameter 0.795" (20.20mm) Height
Technical Specifications
Parameters and characteristics for this part
| Specification | PQ20/20-3C95 |
|---|---|
| Core Type | PQ |
| Finish | Uncoated |
| Height | 0.795 in |
| Length | 0.839 in |
| Material | 3C95 |
| Package Length | 20 mm |
| Package Name | PQ |
| Package Width | 20 mm |
| Width | 0.551 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
