2910110

Active

Phoenix Contact

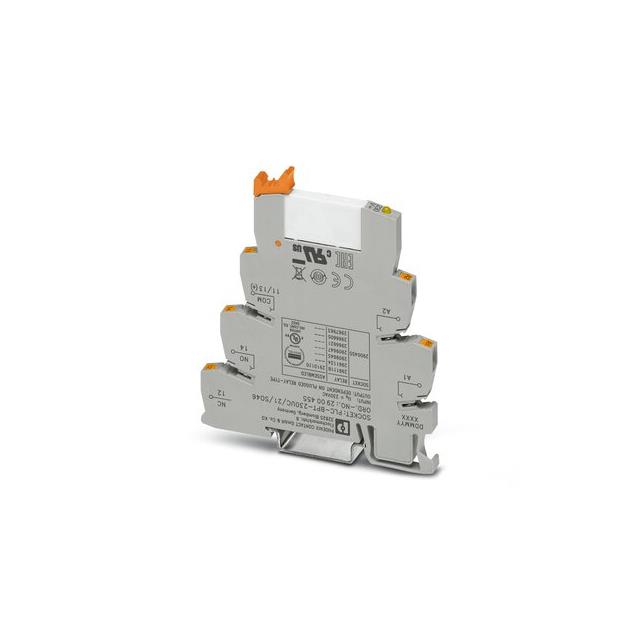

RELAY GEN PURPOSE SPDT 6A 230V

Search across all available documentation for this part.

Active

Phoenix Contact

RELAY GEN PURPOSE SPDT 6A 230V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 19.68

General part information

General Purpose Relay SPDT (1 Form C) 230VAC/DC Coil DIN Rail

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	2910110	29101 Series

Coil Current	10 mA	10 mA
Coil Resistance	20.5 kOhms	20.5 kOhms
Coil Type	Non Latching	Non Latching
Coil Voltage	230 VAC	230 VAC
Contact Form	SPDT (1 Form C)	SPDT (1 Form C)
Contact Material	Silver Tin Oxide (AgSnO)	Silver Tin Oxide (AgSnO)
Contact Rating (Current)	6 A	6 A
Contact Rating @ Voltage	-	6.3 - 250 A
Delay Time	-	300 Min
Delay Time	-	0.1 Sec
Features	Lighted Indicator, Socket Included	Lighted Indicator, Socket Included
Function	-	Programmable (Multi-Function)
Mounting Type	DIN Rail	DIN Rail
Operate Time	7 ms	7 ms
Operating Temperature [Max]	55 °C	55 °C
Operating Temperature [Min]	-40 °C	-40 °C
Relay Type	General Purpose	General Purpose, Mechanical Relay
Release Time	20 ms	20 ms
Switching Voltage	250 VAC, 250 VDC	250 VAC
Termination Style	Spring Terminal	Spring Terminal
Timing Adjustment Method	-	Screwdriver Slot
Timing Initiate Method	-	Input Voltage
Voltage - Supply	-	24 VDC

RELAY GEN PURPOSE SPDT 6A 230V

Part	Switching Voltage	Coil Type	Contact Rating (Current)	Relay Type	Coil Current	Features	Contact Material	Mounting Type	Coil Resistance	Operating Temperature [Min]	Operating Temperature [Max]	Contact Form	Termination Style	Coil Voltage	Operate Time	Release Time	Contact Rating @ Voltage	Function	Delay Time [Max]	Delay Time [Min]	Timing Initiate Method	Timing Adjustment Method	Voltage - Supply
Phoenix Contact 2910110	250 VAC, 250 VDC	Non Latching	6 A	General Purpose	10 mA	Lighted Indicator, Socket Included	Silver Tin Oxide (AgSnO)	DIN Rail	20.5 kOhms	-40 °C	55 °C	SPDT (1 Form C)	Spring Terminal	230 VAC	7 ms	20 ms
Phoenix Contact 2910141				Mechanical Relay				DIN Rail					Spring Terminal				6.3 A, 250 VAC	Programmable (Multi-Function)	300 Min	0.1 Sec	Input Voltage	Screwdriver Slot	24 VDC
