HORIZONTAL TOROIDAL POWER CHOKE
059AT7503HCLF
ActiveGowanda Electronics
HORIZONTAL TOROIDAL POWER CHOKE
Description
General part information
059AT7503HCLF

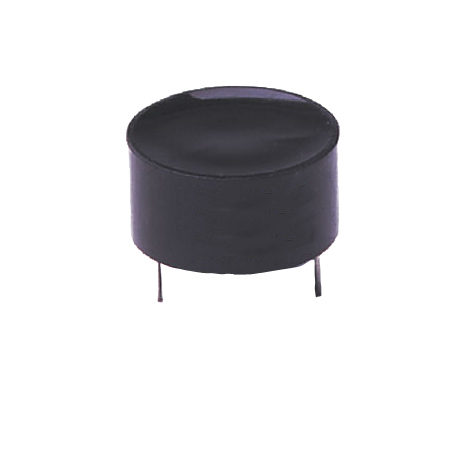

750 µH Shielded Toroidal Inductor 2.1 A 240mOhm Max Radial, Horizontal (Open)
Technical Specifications
Parameters and characteristics for this part
| Specification | 059AT7503HCLF |
|---|---|
| Current - Saturation (Isat) | 2.7 A |
| Current Rating | 2.1 A |
| DC Resistance (DCR) (Max) | 240 mOhm |
| Frequency - Self Resonant | 400 kHz |
| Height - Seated (Max) | 16.51 mm |
| Inductance | 0.75 mH |
| Inductance Frequency - Test | 1 kHz |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 130 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Horizontal (Open), Radial |
| Package Name | Radial |
| Shielding | Shielded |
| Size / Dimension Diameter | 1.25 in |
| Tolerance | 10 % |
| Type | Toroidal |
