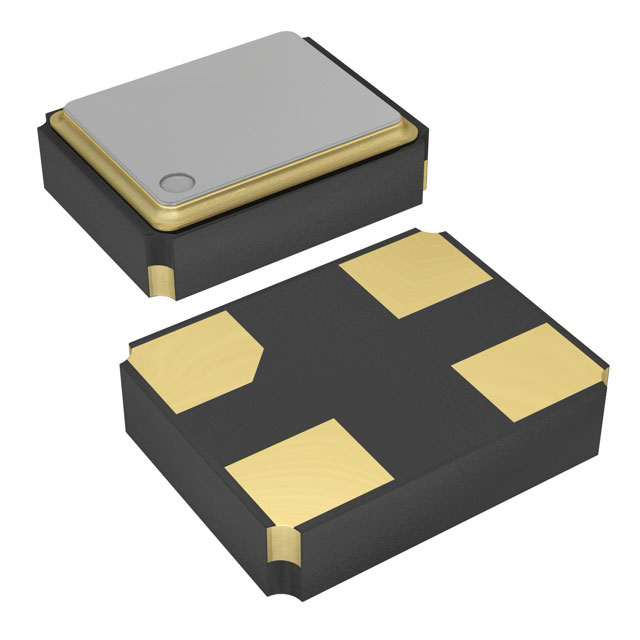

7R-38.400MDIQ-T
ActiveTXC CORPORATION
CRYSTAL 38.4000MHZ 10PF SMD
7R-38.400MDIQ-T
ActiveTXC CORPORATION
CRYSTAL 38.4000MHZ 10PF SMD
Description
General part information
7R-38.400MDIQ-T
38.4 MHz ±20ppm Crystal 10pF 80 Ohms 4-SMD, No Lead
Technical Specifications
Parameters and characteristics for this part
| Specification | 7R-38.400MDIQ-T |
|---|---|
| ESR (Equivalent Series Resistance) | 80 Ohm |
| Frequency | 38.4 MHz |
| Frequency Tolerance | 20 ppm |
| Height - Seated (Max) | 0.024 in |
| Load Capacitance | 10 pF |
| Mounting Type | Surface Mount |
| Operating Mode | Fundamental |
| Package / Case | 4-SMD, No Lead |
| Package Length | 2.05 mm |
| Package Name | 4-SMD |
| Package Width | 1.65 mm |
| Size / Dimension Length | 0.081 in |
| Size / Dimension Width | 0.065 in |
| Type | MHz Crystal |
