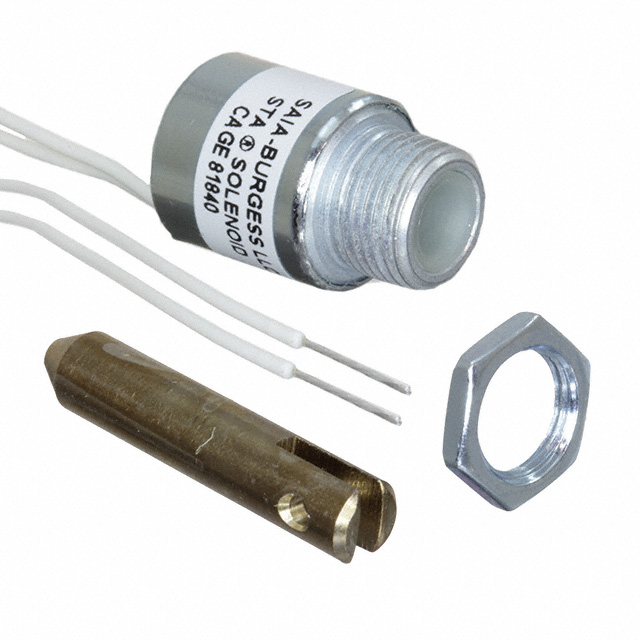

195200-237

Active

Ledex Dormeyer Saia, a Division of Johnson Electric

TUBULAR SOLENOID STA PULL 1/2 X

Search across all available documentation for this part.

Active

Ledex Dormeyer Saia, a Division of Johnson Electric

TUBULAR SOLENOID STA PULL 1/2 X

Technical Specifications

Parameters and characteristics for this part

TUBULAR SOLENOID STA PULL 1/2 X

Part	Stroke Length	Stroke Length	Type	Termination Style	Size / Dimension [diameter]	Size / Dimension [x]	Size / Dimension [diameter]	Size / Dimension [x]	DC Resistance (DCR)	Power (Watts)	Shaft Detail	Duty Cycle	Diameter - Shaft [diameter]	Diameter - Shaft [diameter]	Voltage - Rated	Bushing Thread	Technology
Ledex Dormeyer Saia, a Division of Johnson Electric 195200-237	0.1 in	2.54 mm	Closed Frame (Pull), Tubular	Wire Leads	0.5 in	12.7 mm	0.5 in	0.5 in	45.7 Ohm	12 W	Clevis	Continuous	4.7 mm	0.185 in	24 VDC	3/8-32 UNEF	Electromechanical

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Continuous Duty Solenoid Closed Frame (Pull), Tubular Type 0.100" (2.54mm) Stroke 24VDC Panel Mount
