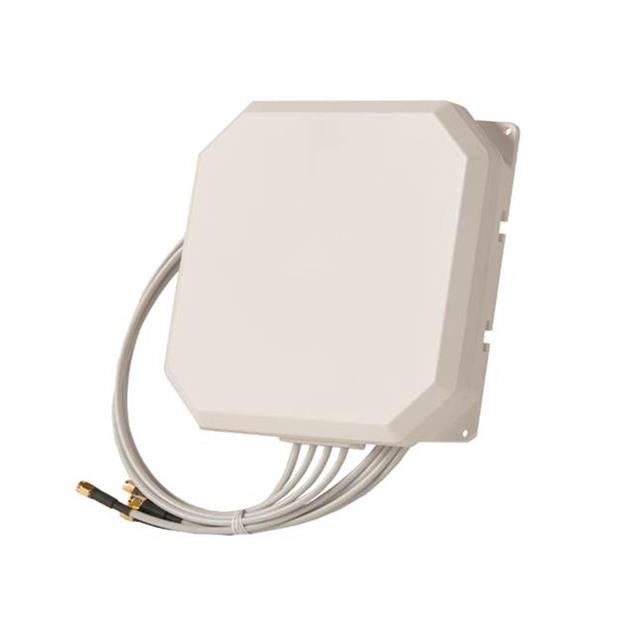

PSQ24495-91NM - PSQ24495-91NM

PSQ24495-91NM

Active
TE Connectivity Raychem Cable Protection

PANEL,DBAND,91CM,NM 2.4-6.0,5DBI,

Deep-Dive with AI

Search across all available documentation for this part.

Documents4-Port Directional Slant 45 MIMO Antenna 2400-2490 MHz / 4900-6000 MHzUK Declaration of Conformity+5
PSQ24495-91NM - PSQ24495-91NM

PSQ24495-91NM

Active
TE Connectivity Raychem Cable Protection

PANEL,DBAND,91CM,NM 2.4-6.0,5DBI,

Deep-Dive with AI

Documents4-Port Directional Slant 45 MIMO Antenna 2400-2490 MHz / 4900-6000 MHzUK Declaration of Conformity+5

Technical Specifications

Parameters and characteristics for this part

SpecificationPSQ24495-91NM
Antenna TypeFlat Panel
ApplicationsWiBro
Frequency Group4 GHz
Frequency Group [Max]3 GHz
Frequency Group [Min]2 GHz
Frequency Range [Max]6 GHz, 2.5 GHz
Frequency Range [Min]4.9 GHz, 2.4 GHz
Gain7.7 dBi
Height (Max) [Max]1.575 in
Height (Max) [Max]40 mm
Ingress ProtectionIP67
Mounting TypeBracket Mount
Number of Bands2
Power - Max [Max]10 W
RF Family/StandardWiFi
TerminationN Type Male
VSWR2

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyBulk 1$ 122.12

Description

General part information

PSQ24495 Series

Panel Antenna, Dual Band, Wi-Fi, External Mount, Pole/Mast/Bracket Mount, N-type, Directional, Multiple Ports, > 6 dBi Peak Gain
