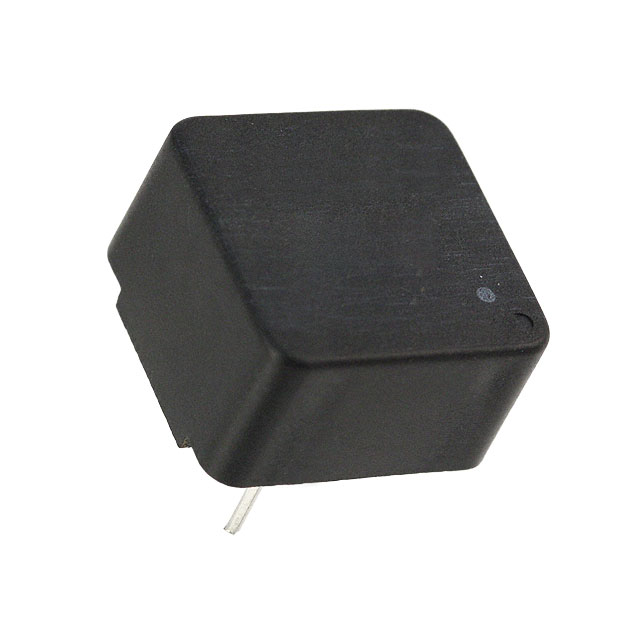

PE-52625NL
ActivePulse Electronics
FIXED IND 150UH 1.7A 420 MOHM TH
PE-52625NL
ActivePulse Electronics
FIXED IND 150UH 1.7A 420 MOHM TH
Description
General part information
PE-52625NL
150 µH Unshielded Toroidal Inductor 1.7 A 420mOhm Max Radial, Horizontal - Corner Terminals
Technical Specifications
Parameters and characteristics for this part
| Specification | PE-52625NL |
|---|---|
| Current Rating | 1.7 A |
| DC Resistance (DCR) (Max) | 420 mOhm |
| Height - Seated (Max) | 0.46 in |
| Inductance | 150 µH |
| Inductance Frequency - Test | 20 kHz |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 130 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Horizontal - Corner Terminals, Radial |
| Shielding | Unshielded |
| Size / Dimension Length | 0.71 in |
| Size / Dimension Width | 0.71 in |
| Tolerance | 20 % |
| Type | Toroidal |
