27502500001
ObsoleteLITTELFUSE
FUSE BRD MT 250MA 125VAC/VDC AXL
27502500001
ObsoleteLITTELFUSE
FUSE BRD MT 250MA 125VAC/VDC AXL
Description
General part information
27502500001

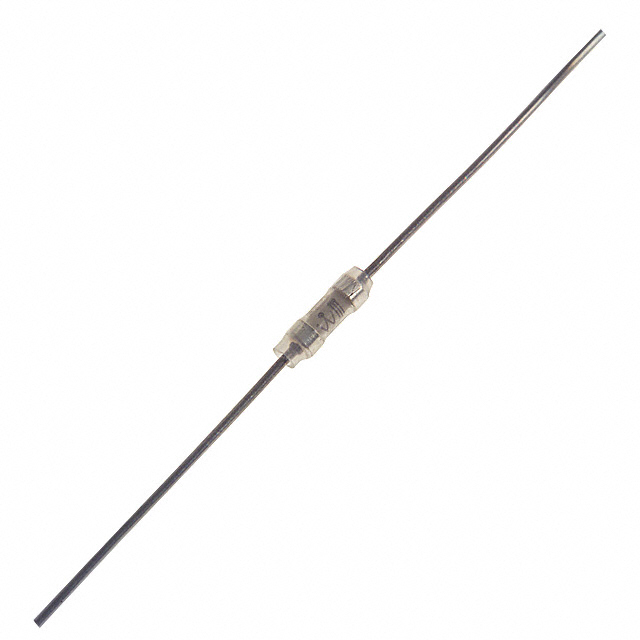

250 mA 125 V AC 125 V DC Fuse Board Mount (Cartridge Style Excluded) Through Hole Cartridge, Non-Standard (Axial)
Technical Specifications
Parameters and characteristics for this part
| Specification | 27502500001 |
|---|---|
| Approval Agency | UL, CE, cUL |
| Breaking Capacity (AC) | 50 A |
| Breaking Capacity (DC) | 300 A |
| Current Rating | 0.25 A |
| Fuse Type | Board Mount (Cartridge Style Excluded) |
| Melting I²t | 0.007 |
| Mounting Type | Through Hole |
| Package / Case | Cartridge, Non-Standard (Axial) |
| Response Time | Fast Blow |
| Size / Dimension Diameter | 0.094 in |
| Size / Dimension Length | 0.283 in |
| Voltage Rating - AC | 125 V |
| Voltage Rating - DC | 125 V |
